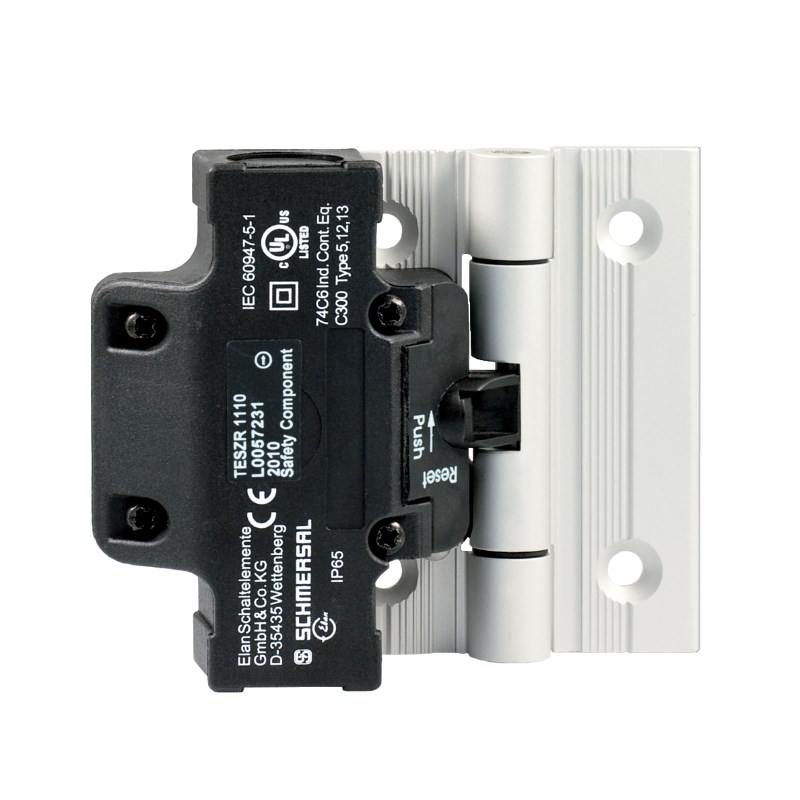

Schmersal 103040725 Hinge Safety Switch 230VAC 1NC

Product Code: 103040725

  • 230 VAC, 2 A rated for reliable performance
  • Durable with 10 million mechanical cycles
  • IP65 protection against dust and water
  • Operates in -20 to 65°C temperature range
  • Reinforced thermoplastic housing for durability
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Hinge Switch
Brand
Schmersal
Series
TESZ

Electrical

No. of N/C Contacts
3
No. of N/O Contacts
0
Rated Current (In)
2A, 1A
Rated Voltage (Ur)
230V AC, 24V DC
Terminal Type
Screw terminals

Mechanical

Cable Entry
2 x M20 x 1.5
Housing Material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing

Dimensions & Physical Data

Depth
36mm
Height
92mm
Weight
0.28kg
Width
111.5mm

Environmental

Operating Temperature
-25°C to 65°C
IP Rating
IP65
