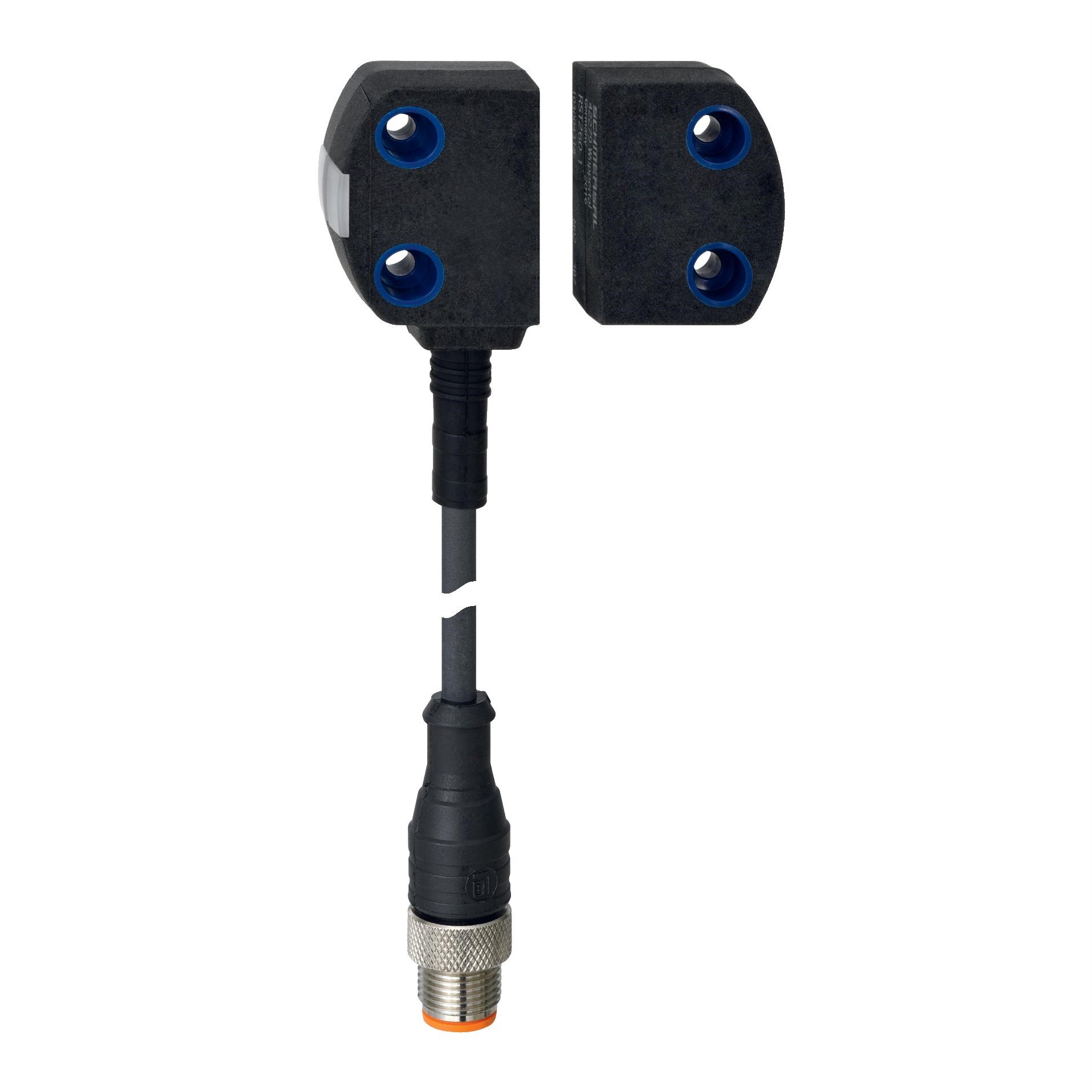

Schmersal 103040369 Electronic safety sensors

Product Code: 103040369

  • Operates at 24 VDC, 0.5 mA for efficient performance
  • Durable glass fibre reinforced thermoplastic housing
  • High protection with IP65 and IP67 ratings
  • Wide temp range: -28 to 65°C for varied environments
  • Complies with multiple international safety standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Electronic Safety Sensor (Rfid)
Brand
Schmersal
Series
RSS 260

Electrical

Plug Type
Cable with M8 connector, 8-pole
Rated Current (In)
0.6A
Rated Voltage (Ur)
24V DC

Mechanical

Actuator Type
RST-U-2, RST16-1, RST260-1
Housing Material
Plastic, thermoplastic, self-extinguishing

Dimensions & Physical Data

Depth
29.5mm
Height
18mm
Weight
0.068kg
Width
39.2mm
Cable Length
0.1m

Environmental

Operating Temperature
-28°C to 65°C
IP Rating
IP65, IP67
