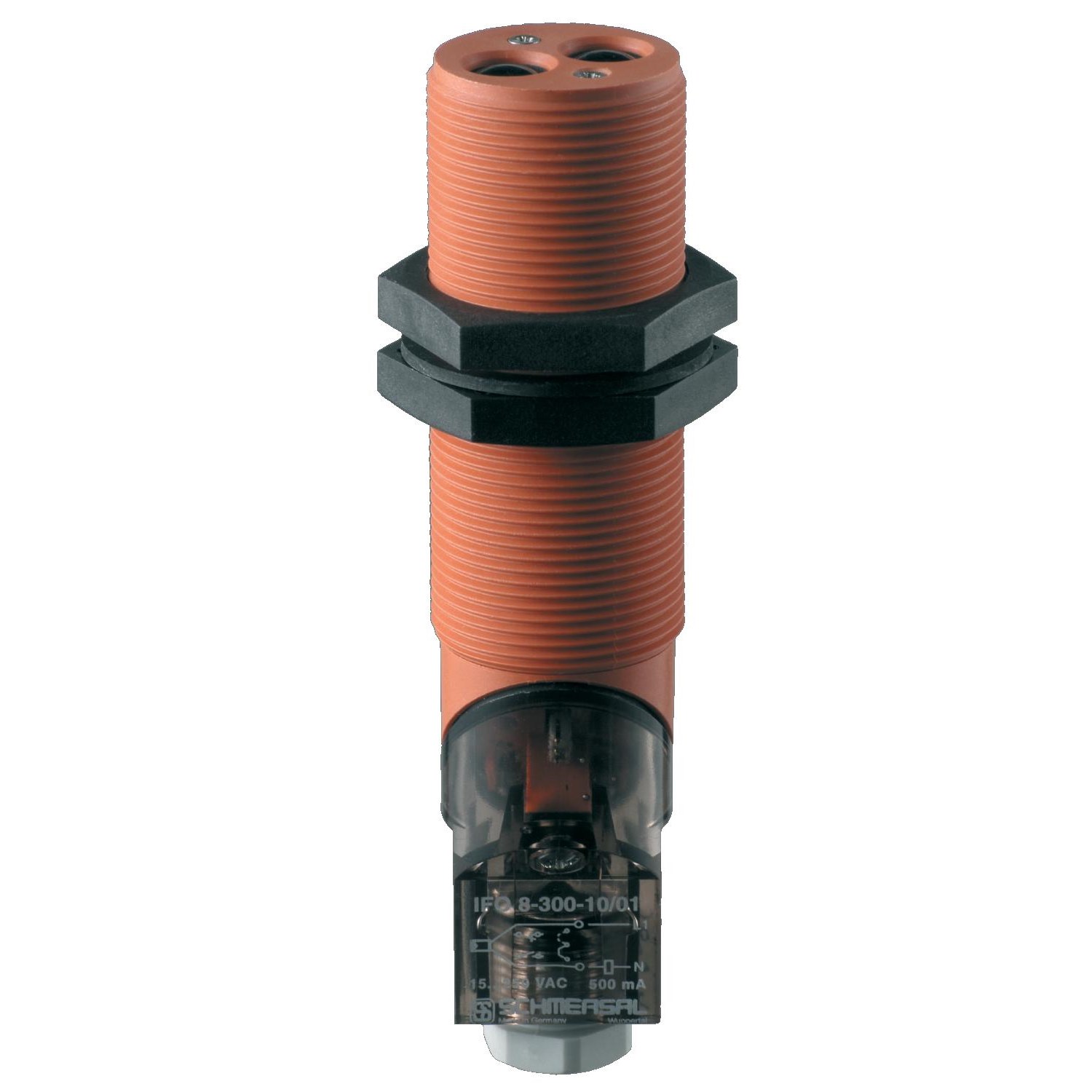

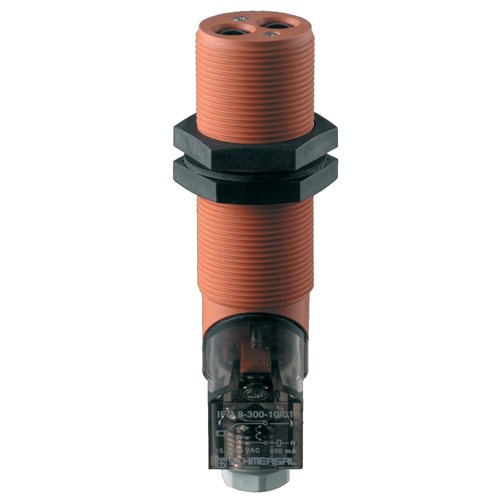

Schmersal 103038718 Optical Sensor 15-60VDC

Product Code: 103038718

  • Operates on 15-60 VDC
  • Supports up to 400 mA current
  • Durable plastic housing
  • IP67/IP65 protection rating
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Photoelectric Proximity Switch
Brand
Schmersal
Series
IFOD - M30

Electrical

Max. Switching Distance
1,000mm
Sensing Type
Diffuse reflective
Type of Switching Output
p-type
Electrical Connection
Screw connection
Light Source
yellow LED
Rated Voltage (Ur)
15V to 60V DC

Mechanical

Material
Plastic

Dimensions & Physical Data

Depth
118mm
Height
46mm
Width
46mm

Environmental

IP Rating
IP65
Ambient Temperature
-5°C to 70°C

Documents

IPD Product Catalogue V17
