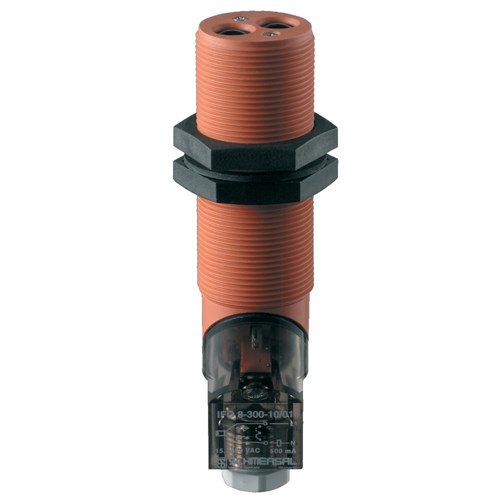

Schmersal 103038716 Optical Sensor 10 V NO+NC

Product Code: 103038716

  • Rated for 10 V, 400 mA, and 100 Hz
  • NO+NC contact configuration
  • Durable brass housing with IP65 protection
  • Complies with EN IEC 60947-5-2 standards
  • Compact size: 118x46x46 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Optical Sensor
Brand
Schmersal
Series
IFOD

Electrical

Max. Switching Distance
1000mm
Sensing Type
Photo-electric proximity
Type of Switching Output
p-type
Electrical Connection
Screw connection
Rated Voltage (Ur)
15V to 60V DC

Mechanical

Material
Brass (housing), nickel-plated; plastic (active area)

Dimensions & Physical Data

Depth
118mm
Height
46mm
Width
46mm

Environmental

Operating Temperature
-5°C to 70°C
IP Rating
IP65
