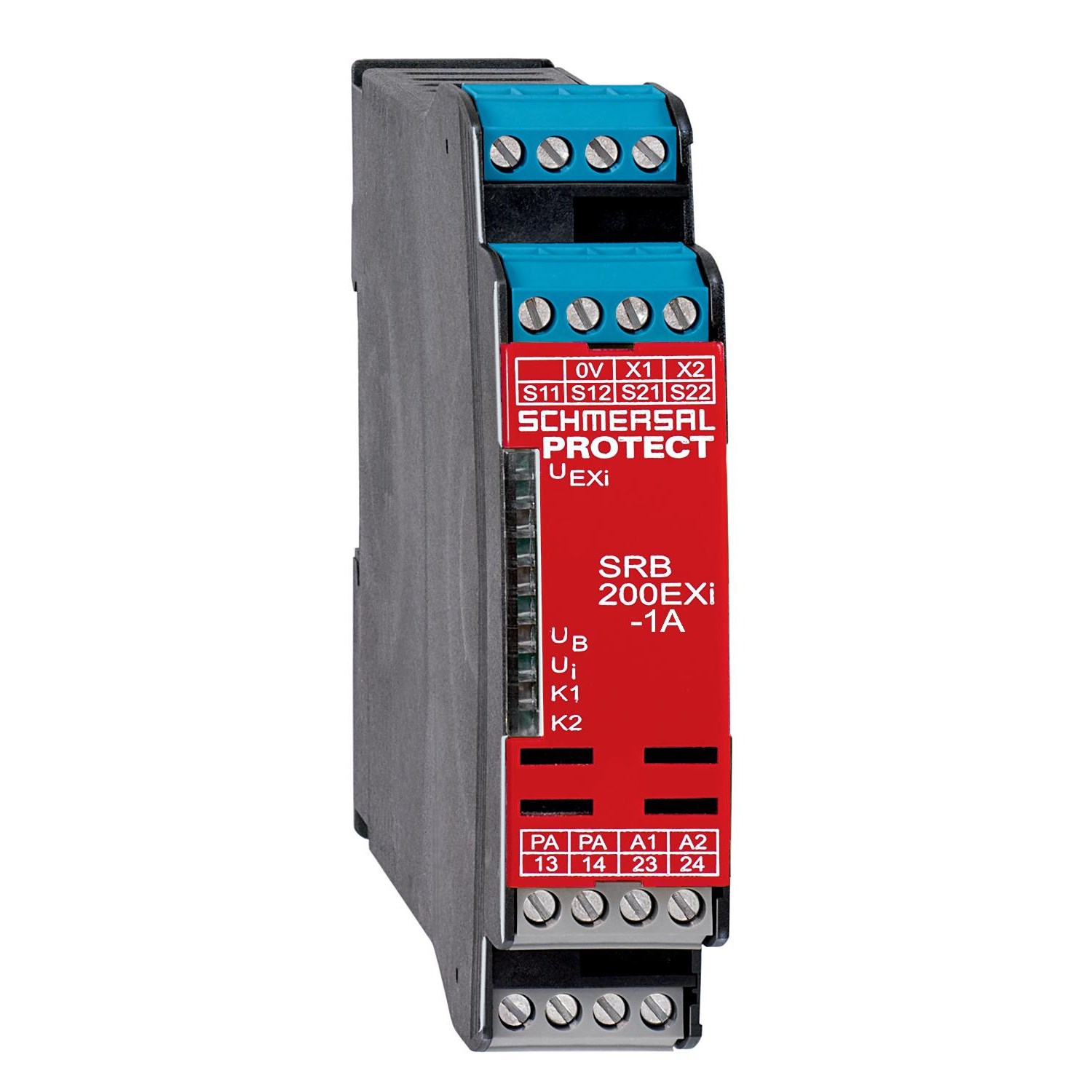

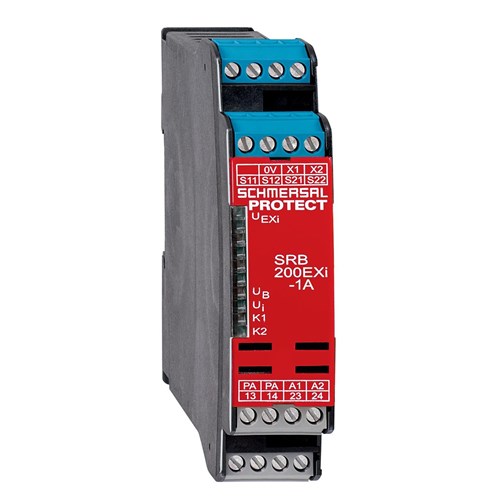

Schmersal 103037577 EX Safety Control Module 24VDC

Product Code: 103037577

  • Compact size: 22.5 mm width
  • Durable: 10 million mechanical cycles
  • Wide temp range: -25 to 60°C
  • High protection: IP20, IP40, IP54
  • Robust shock resistance: 30 g/11 ms
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Explosion - Protected Safety Relay Module (Ex - I)
Brand
Schmersal
Series
SRB200EXi-1 A

Electrical

Supply Current
57 mA
Switching Current
2:00 AM
Switching Voltage
230 V AC
Supply Voltage
24 V DC

Mechanical

Housing Material
Glass-fibre reinforced thermoplastic, ventilated

Dimensions & Physical Data

Depth
121 mm
Height
100 mm
Weight
266 g
Width
22.5 mm

Environmental

Operating Temperature
-25 to 60 °C
IP Rating
IP40, IP54, IP20

Safety, Standards & Compliance

Safe Relay Outputs, Stop 0
2
Safe Relay Outputs, Stop 1
0
Safety Category
4
Safety Integrity Level
SIL 3
Monitoring Circuit
Yes
Performance Level
PL e

Documents

IPD Product Catalogue V17
