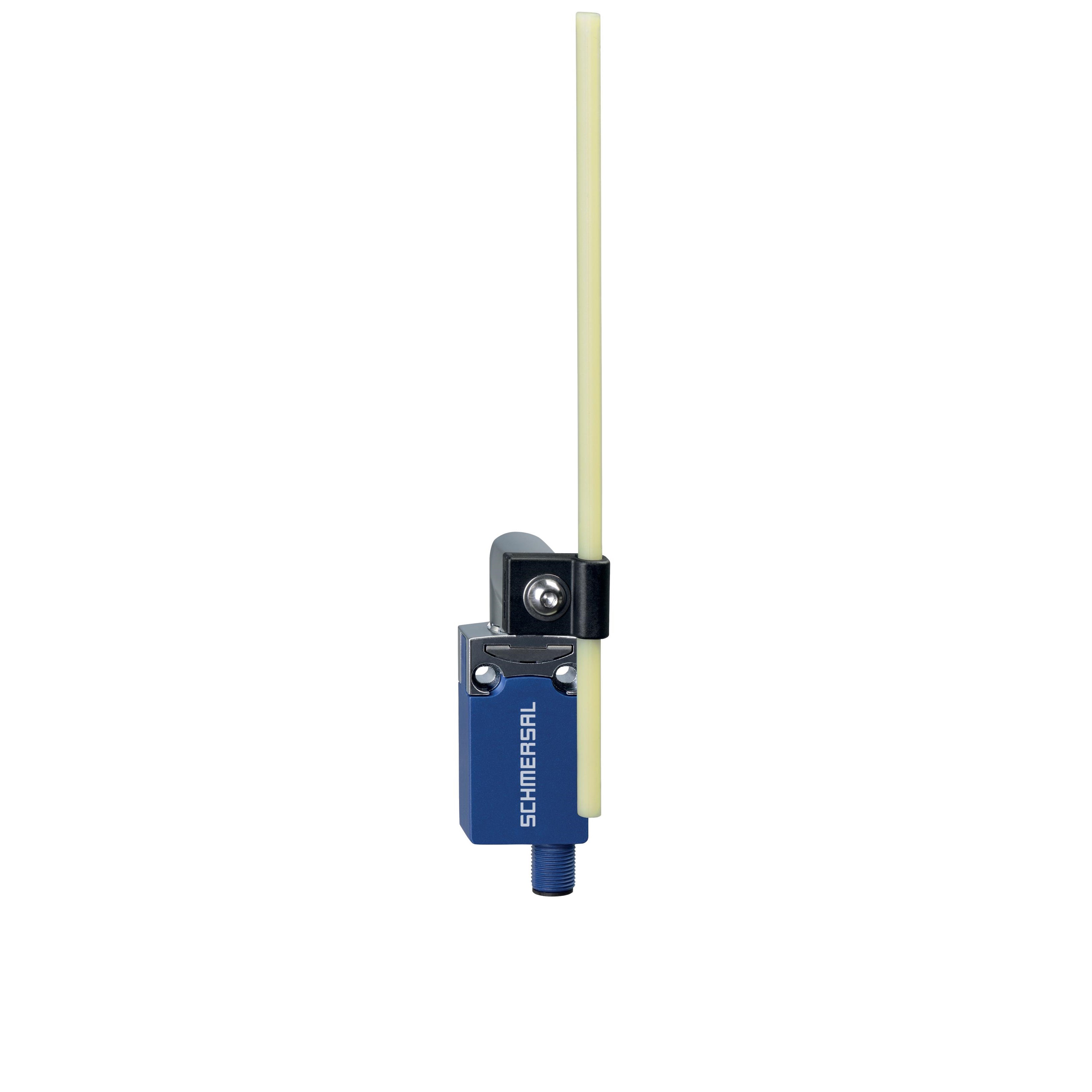

Schmersal 103032704 Position Switch 240VAC 1NO+1NC

Product Code: 103032704

  • Durable plastic, glass fibre reinforced thermoplastic
  • IP66/IP67 for excellent protection against dust and water
  • Operates in temperatures from -30 to 80°C
  • High mechanical life of 10 million cycles
  • Certified with CCC, cULus, EN IEC 60947-5-1 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
300V
Terminal Type
Connector M12, 4-pole

Mechanical

Actuator Type
Rod lever J200
Housing Material
Plastic, glass-fibre reinforced thermoplastic, zinc die-cast, chromated

Dimensions & Physical Data

Depth
16.6mm
Height
169mm
Weight
0.112kg
Width
31mm

Environmental

IP Rating
IP66,IP67
Ambient Temperature
-30°C to 80°C

Documents

IPD Product Catalogue V17
