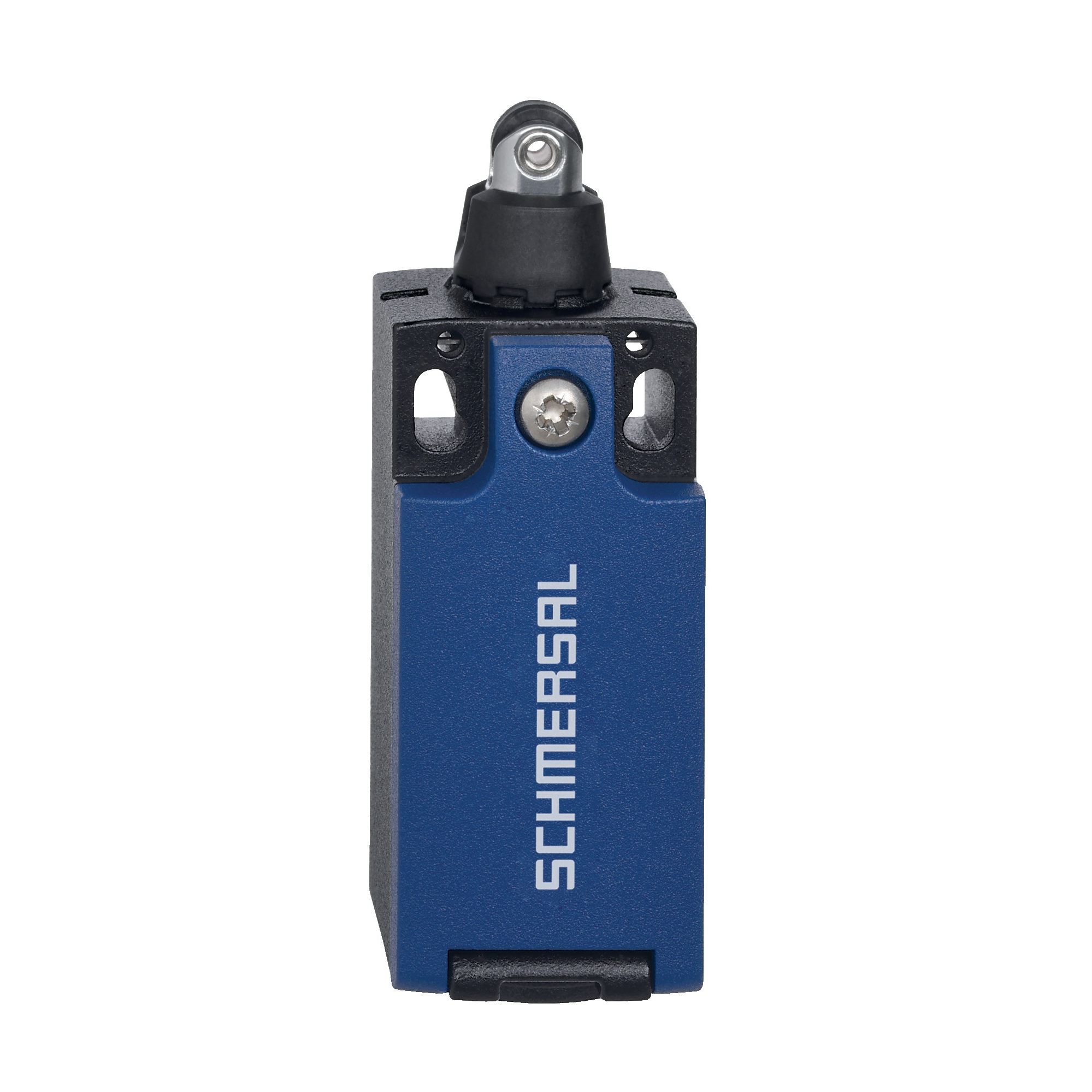

Schmersal 103028096 Position Switch with Safety Function 50VAC 1NO+1NC

Product Code: 103028096

  • Snap action with 1NO+1NC contacts
  • Durable die-cast zinc housing
  • High protection: IP66, IP67 rated
  • Operates in -30 to 80°C range
  • Long life: 10 million cycles
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
250V AC
Terminal Type
Screw terminals
Thermal Test Current
4A

Mechanical

Actuator Type
Roller plunger R200
Housing Material
Metal, zinc die-cast

Dimensions & Physical Data

Depth
32.5mm
Height
85.6mm
Weight
0.204kg
Width
31mm

Environmental

IP Rating
IP66,IP67
Ambient Temperature
-40°C to 80°C
