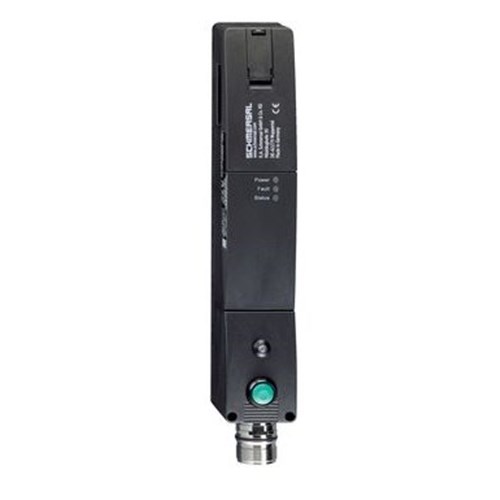

Schmersal 103025499 Solenid Interlock Switch

Product Code: 103025499

  • Durable glass fibre reinforced thermoplastic housing
  • High protection with IP66 and IP67 ratings
  • Long lifespan with 1 million mechanical cycles
  • Operates in temperatures from -25 to 60°C
  • Compliant with multiple EN IEC and ISO standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
Schmersal
Series
AZM 201

Electrical

Rated Current (In)
1,200mA
Rated Voltage (Ur)
24 VDC -15 % / +10 % (stabilised PELV power supply)

Mechanical

Actuator Type
AZ/AZM201-B1; AZ/AZM201-B30
Guard Locking Force
2,000N
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
50mm
Height
220mm
Weight
0.61kg
Width
40mm

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP66; IP67
