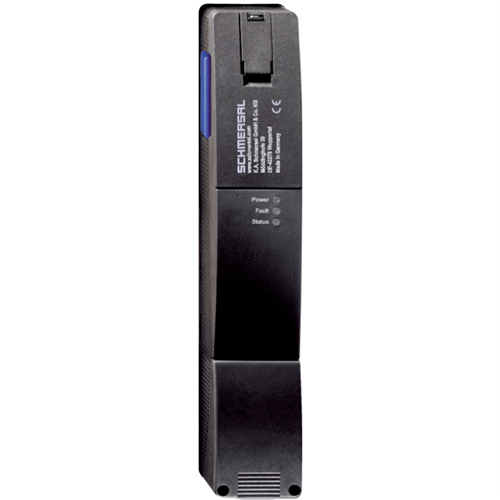

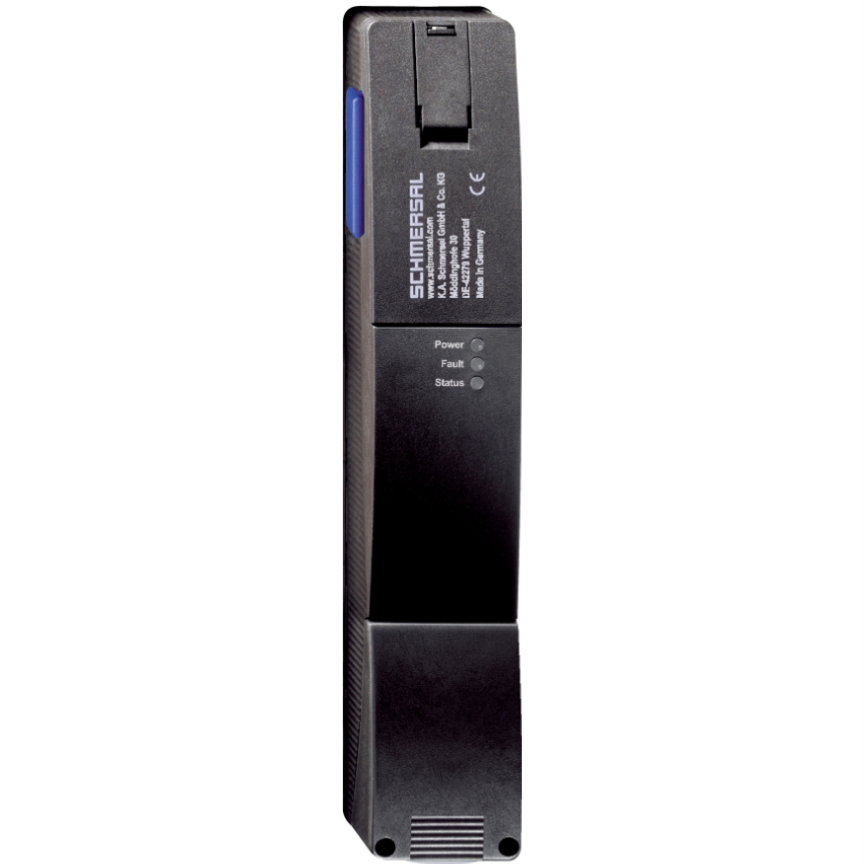

Schmersal 103016752 Solenid Interlock Switch

Product Code: 103016752

  • Durable glass fibre reinforced thermoplastic housing
  • High protection rating of IP66/IP67
  • Impressive mechanical life of 1,000,000 cycles
  • Complies with multiple EN and IEC standards
  • Strong rated force of 2600 N
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
Schmersal
Series
AZM 201

Electrical

Rated Current (In)
1,200mA
Rated Voltage (Ur)
24 VDC -15 % / +10 % (stabilised PELV power supply)
Terminal Type
Screw terminals

Mechanical

Actuator Type
AZ/AZM201-B1; AZ/AZM201-B30
Cable Entry
1 x M20
Guard Locking Force
2,000N
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
50mm
Height
220mm
Weight
0.53kg
Width
40mm

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP66; IP67
