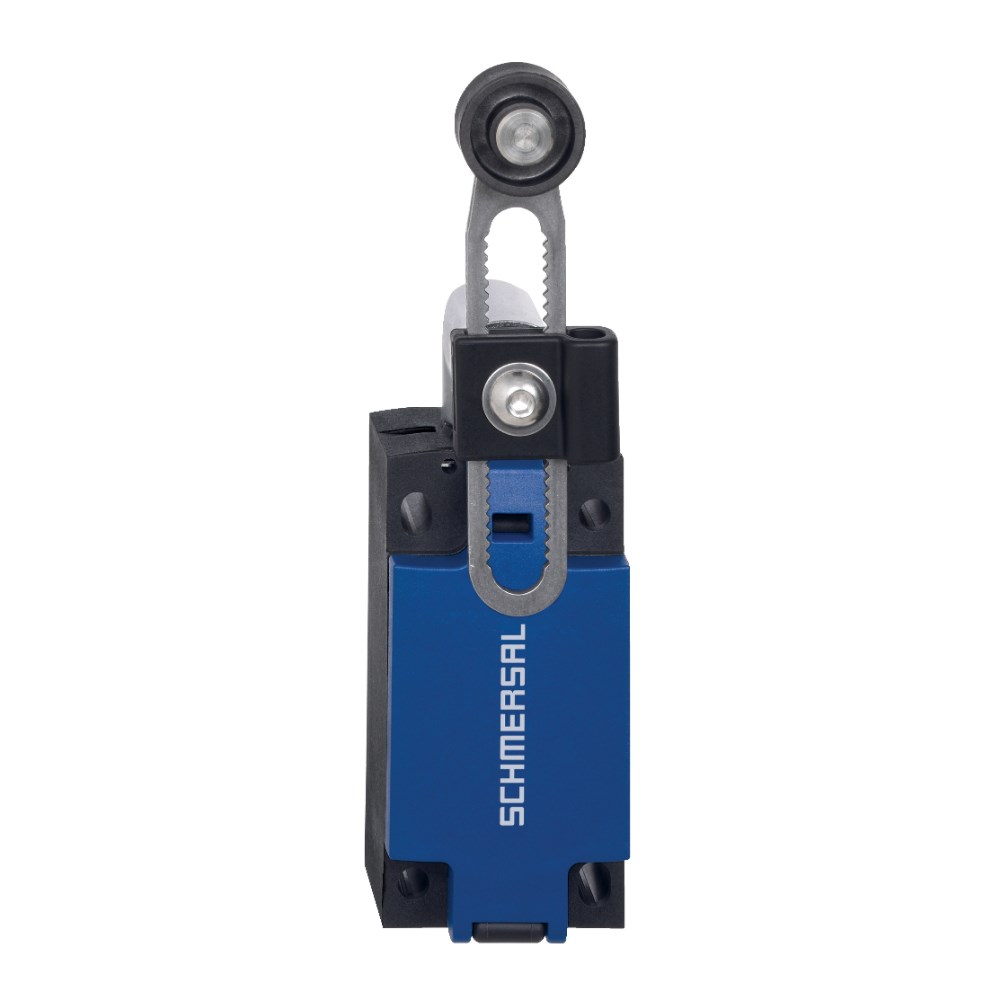

Schmersal 103015162 Position Switch with Safety Function 240VAC 1NO+2NC

Product Code: 103015162

  • Rated for 240 VAC, 3 A, and 5000 cycles/hour
  • Durable with 10 million mechanical cycles
  • IP66/IP67 protection against dust and water
  • Operates in temperatures from -30 to 80°C
  • Complies with CCC, cULus, EN IEC standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
300V
Terminal Type
Screw terminals
Thermal Test Current
5A

Mechanical

Actuator Type
Roller lever N300
Housing Material
Plastic, glass-fibre-reinforced

Dimensions & Physical Data

Depth
37mm
Height
168mm
Weight
0.166kg
Width
41mm

Environmental

IP Rating
IP66,IP67
Ambient Temperature
-40°C to 80°C
