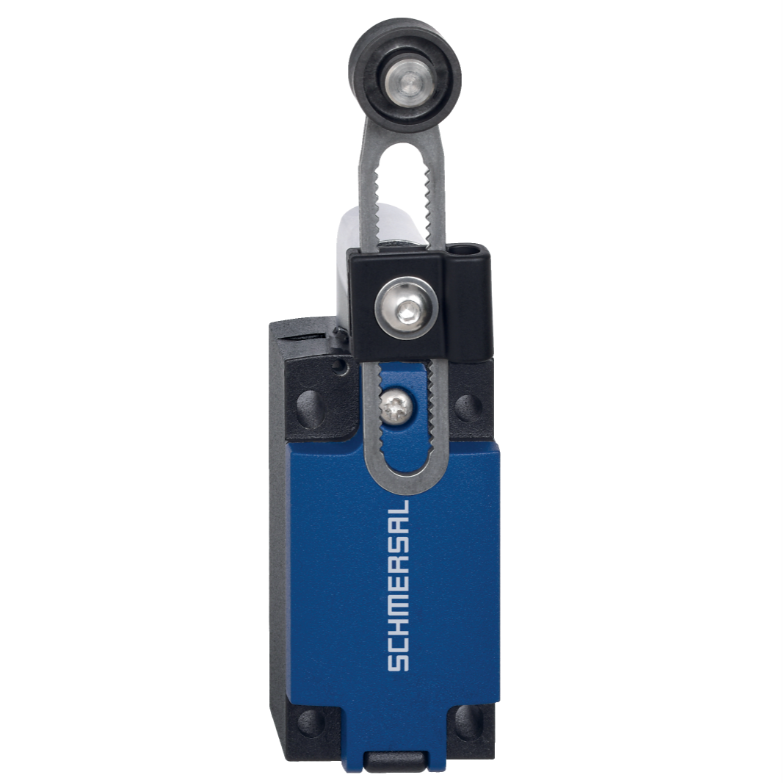

Schmersal 103015125 Position Switch with Safety Function 1NO+1NC

Product Code: 103015125

  • 3A limit switch with 1NO+1NC contacts
  • Durable metal housing, die-cast zinc
  • High protection: IP66/IP67 rated
  • Operates in -30 to 80°C range
  • Complies with EN IEC 60947-5-1 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
300V
Terminal Type
Screw terminals
Thermal Test Current
10A

Mechanical

Actuator Type
Roller lever N300
Housing Material
Metal, zinc die-cast

Dimensions & Physical Data

Depth
37mm
Height
168mm
Weight
0.421kg
Width
41mm

Environmental

IP Rating
IP66,IP67
Ambient Temperature
-40°C to 80°C

Documents

IPD Product Catalogue V17
