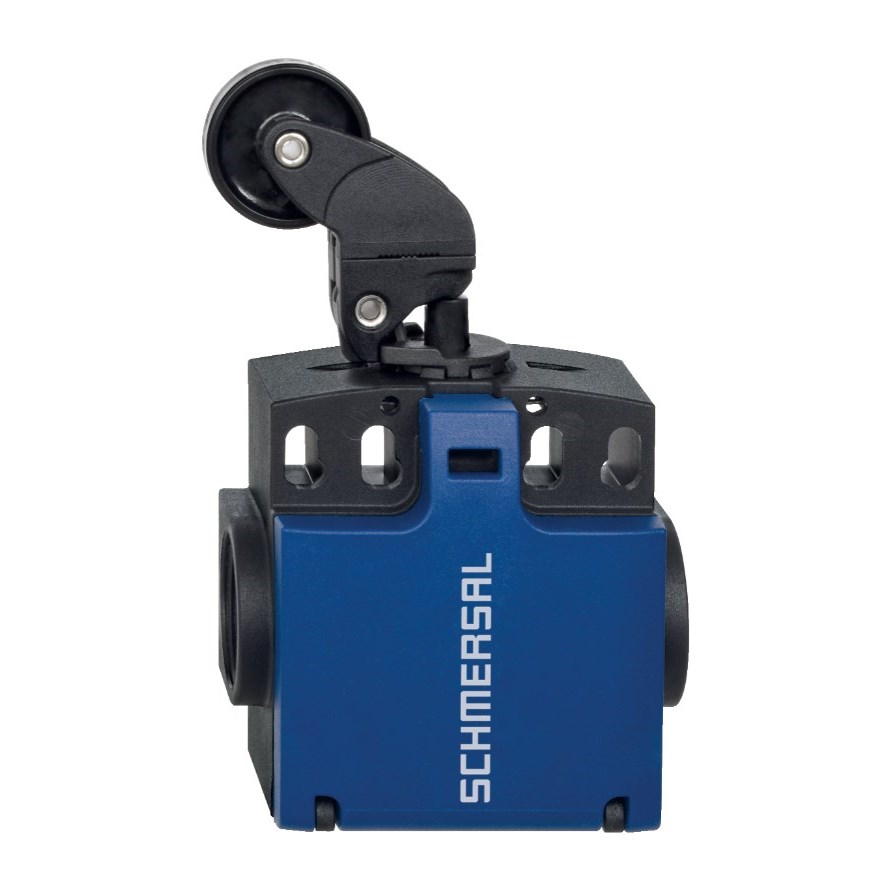

Schmersal 103015088 Position Switch with Safety Function 300 V 1NO+1NC

Product Code: 103015088

  • Rated for 300 V and 400 A
  • 1NO+1NC contact configuration
  • Durable glass fibre reinforced plastic housing
  • High protection with IP66, IP67 ratings
  • Operates in -30 to 80°C range
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
250V AC
Terminal Type
Screw terminals
Thermal Test Current
10A

Mechanical

Actuator Type
Angle roller lever K250
Housing Material
Plastic, glass-fibre-reinforced

Dimensions & Physical Data

Depth
33mm
Height
107mm
Weight
0.086kg
Width
59mm

Environmental

IP Rating
IP66,IP67
Ambient Temperature
-40°C to 80°C

Documents

IPD Product Catalogue V17
