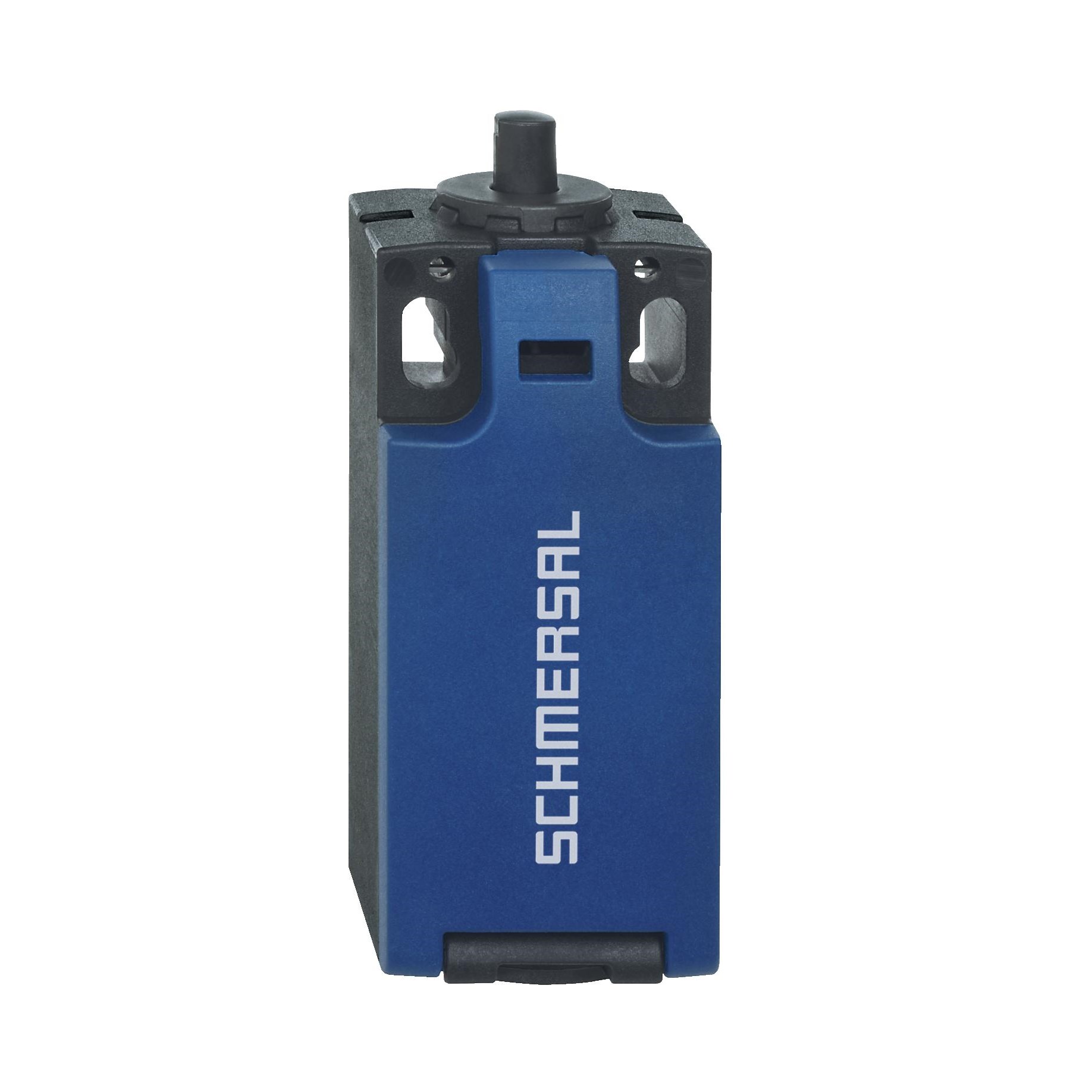

Schmersal 103015022 Position Switch with Safety Function 240VAC, 24VDC 1NO+1NC

Product Code: 103015022

  • Operates at 240 VAC & 24 VDC, 3 A
  • Durable with 10 million mechanical cycles
  • IP66 protection for harsh environments
  • Wide temp range: -30 to 80°C
  • Complies with EN IEC and ISO standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
250V AC
Terminal Type
Screw terminals
Thermal Test Current
10A

Mechanical

Actuator Type
Plunger S200
Housing Material
Plastic, glass-fibre-reinforced

Dimensions & Physical Data

Depth
32.5mm
Height
75.5mm
Weight
0.067kg
Width
31mm

Environmental

IP Rating
IP66,IP67
Ambient Temperature
-40°C to 80°C
