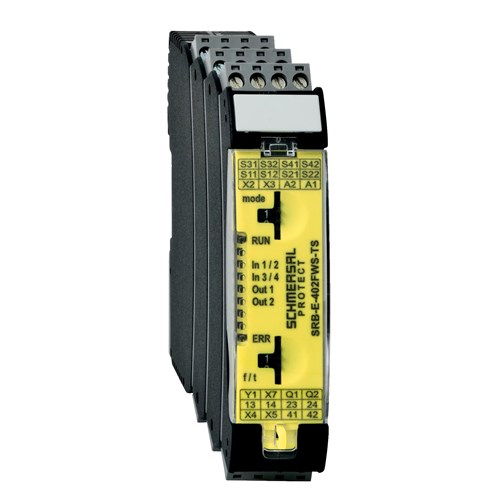

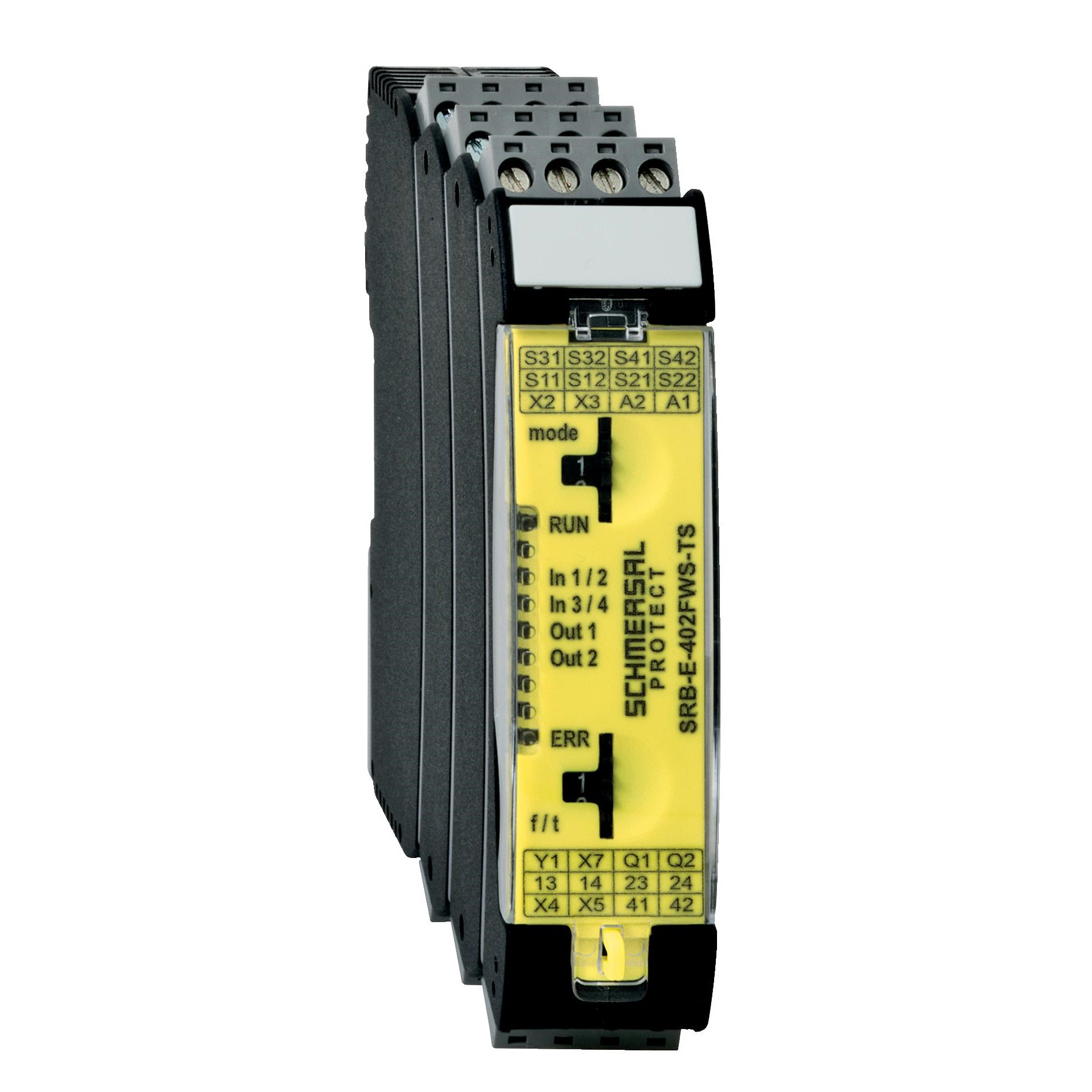

Schmersal 103014757 Multi-Function Safety Relay Module 26.4VAC, 28.8VDC

Product Code: 103014757

  • Operates at 26.4 VAC, 28.8 VDC
  • Durable with 10 million cycles
  • Compact size: 22x98x115 mm
  • IP20/IP40 protection rating
  • High shock resistance: 30 g/11 ms
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Multi - Function Safety Relay Module
Brand
Schmersal
Series
SRB-E-402FWS-TS

Electrical

Supply Current
150 mA
Switching Current
6:00 AM
Switching Voltage
250 V AC
Supply Voltage
24 V DC

Mechanical

Housing Material
Glass-fibre reinforced thermoplastic, ventilated

Dimensions & Physical Data

Depth
115 mm
Height
98 mm
Weight
190 g
Width
22.5 mm

Environmental

Operating Temperature
-25 to 70 °C
IP Rating
IP40, IP54, IP20

Safety, Standards & Compliance

Auxiliary Relay Outputs
1
Auxiliary Semiconductor Outputs
1
Safe Relay Outputs, Stop 0
2
Safe Semiconductor Outputs, Stop 1
0
Safe Semiconductor Outputs, Stop 0
2
Safe Relay Outputs, Stop 1
0
Safety Category
4
Safety Integrity Level
SIL 3
Monitoring Circuit
Yes
Performance Level
PL e
