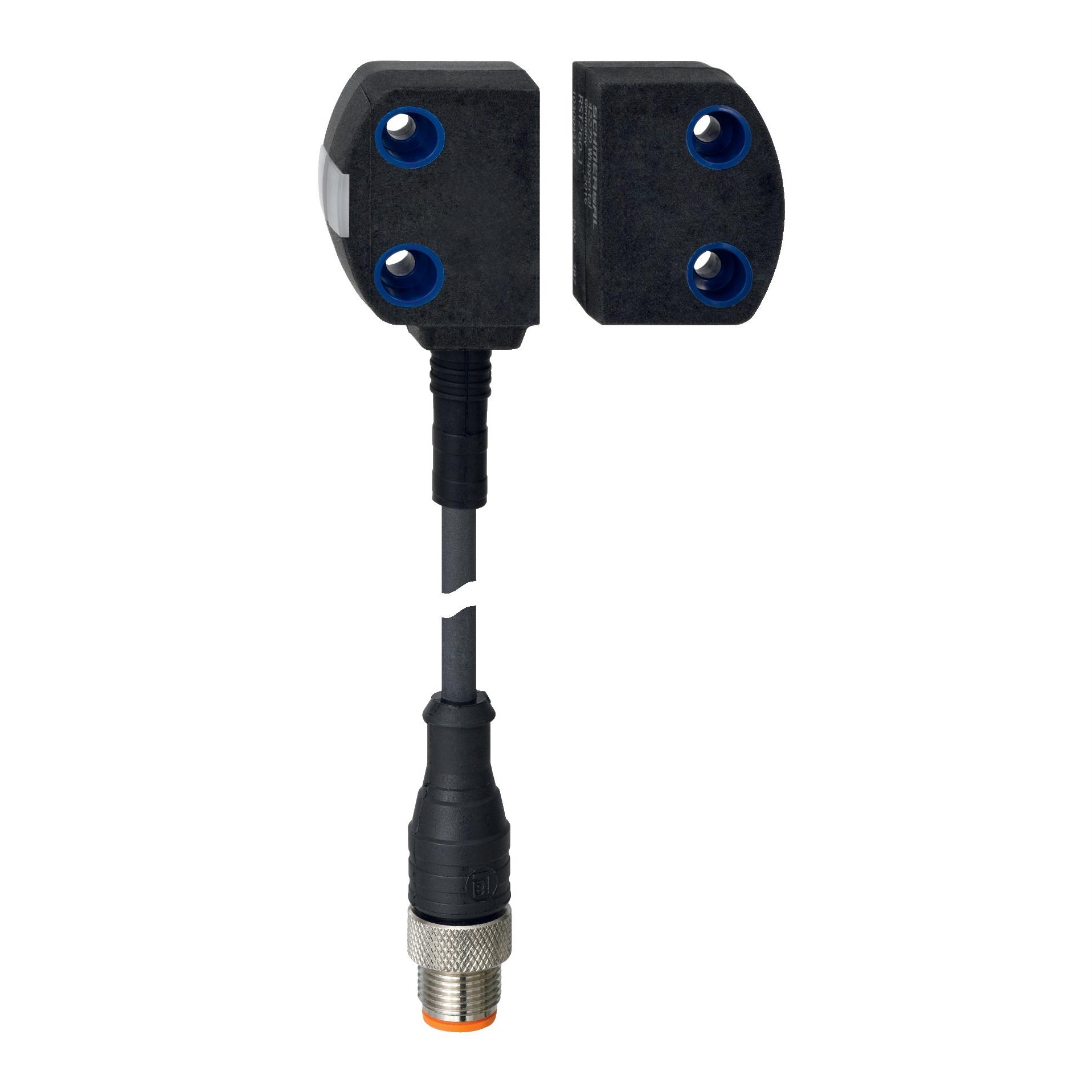

Schmersal 103014732 Electronic safety sensors RSS260

Product Code: 103014732

  • Operates at 24 VDC, 600 mA
  • M12 Connector, 4 Pole for easy connection
  • Durable plastic with glass fibre reinforcement
  • High protection: IP65 & IP67 rated
  • Complies with multiple safety standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Electronic Safety Sensor (Rfid)
Brand
Schmersal
Series
RSS 260

Electrical

Plug Type
Cable with M12 connector, 8-pole
Rated Current (In)
0.6A
Rated Voltage (Ur)
24V DC

Mechanical

Actuator Type
RST-U-2, RST16-1, RST260-1
Housing Material
Plastic, thermoplastic, self-extinguishing

Dimensions & Physical Data

Depth
29.5mm
Height
18mm
Weight
0.08kg
Width
39.2mm
Cable Length
0.25m

Environmental

Operating Temperature
-28°C to 65°C
IP Rating
IP65, IP67

Documents

IPD Product Catalogue V17
