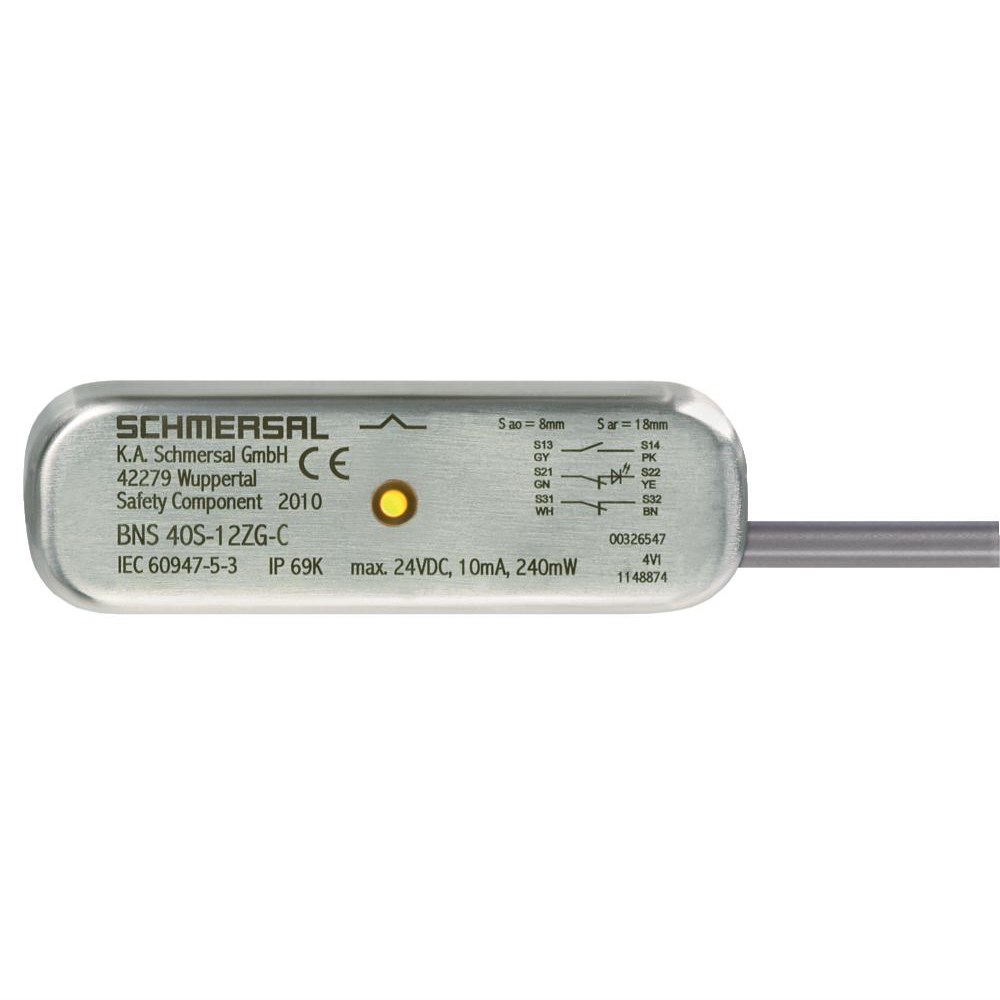

Schmersal 103014357 Magnetic Safety Sensor 0.3m Cable

Product Code: 103014357

  • High durability: 25 million cycles
  • Robust IP69 stainless steel housing
  • Compact size: 14.5 x 88 x 27 mm
  • Wide temp range: -25 to 80°C
  • Complies with BG-GS-ET-14, EN IEC standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS 40S

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
1
Plug Type
Connector M12, 8-pole, A-coded
Rated Current (In)
0.01A

Mechanical

Actuator Type
BPS 40S-1; BPS 40S-2-C; BPS 40S-2; BPS 40S-1-C
Housing Material
Stainless steel (V4A)

Dimensions & Physical Data

Depth
14mm
Height
27mm
Weight
0.188kg
Width
88mm
Cable Length
0.3m

Environmental

Operating Temperature
-25°C to 75°C
IP Rating
IP69

Documents

IPD Product Catalogue V17
