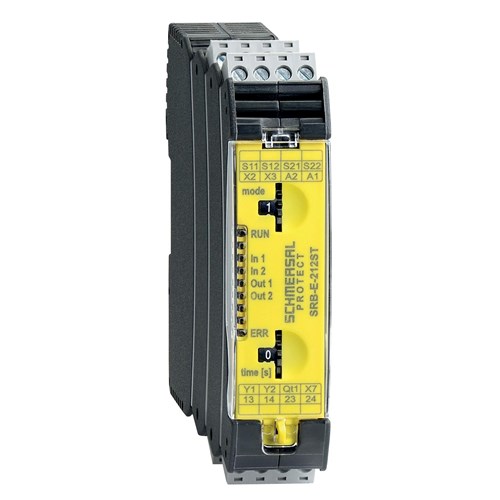

Schmersal 103014308 Multi-Function Safety Relay Module 24VDC

Product Code: 103014308

  • 24 VDC monitoring module
  • 3 W power consumption
  • Durable reinforced glass fibre housing
  • IP20 protection rating
  • Complies with EN IEC 60947-5-1, EN ISO 14119 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Multi - Function Safety Relay Module
Brand
Schmersal
Series
SRB-E-232ST

Electrical

Switching Current
6:00 AM
Switching Voltage
250 V AC
Supply Voltage
24 V DC

Mechanical

Housing Material
Glass-fibre reinforced thermoplastic, ventilated

Dimensions & Physical Data

Depth
115 mm
Height
98 mm
Weight
170 g
Width
22.5 mm

Environmental

Operating Temperature
-25 to 60 °C
IP Rating
IP40, IP54, IP20

Safety, Standards & Compliance

Auxiliary Relay Outputs
1
Auxiliary Semiconductor Outputs
1
Safe Relay Outputs, Stop 0
0
Safe Semiconductor Outputs, Stop 1
0
Safe Semiconductor Outputs, Stop 0
2
Safe Relay Outputs, Stop 1
3
Safety Category
4
Safety Integrity Level
SIL 3
Monitoring Circuit
Yes
Performance Level
PL e

Documents

IPD Product Catalogue V17
