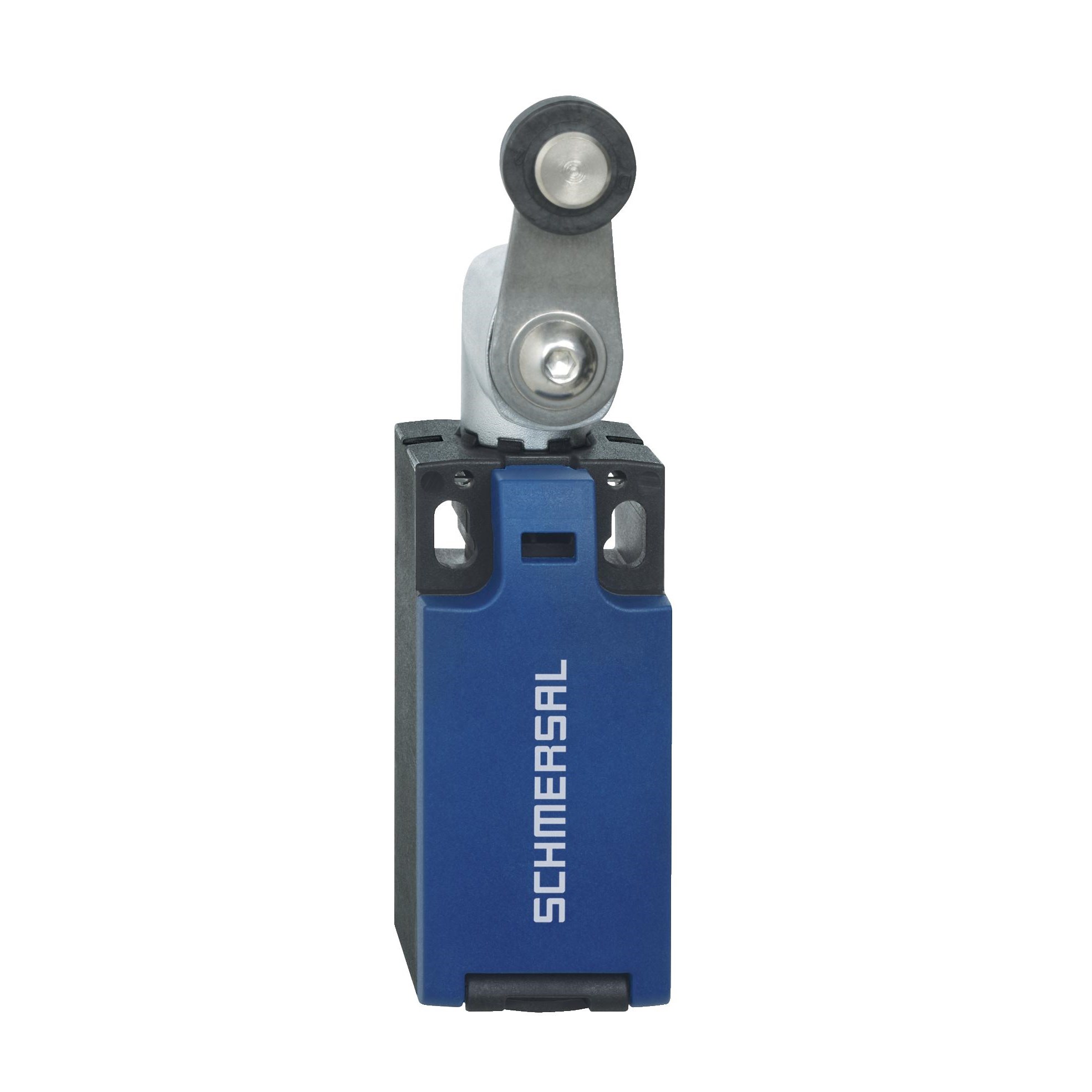

Schmersal 103013857 Position Switch with Safety Function 240VAC 1NO+1NC

Product Code: 103013857

  • Durable with 10 million mechanical cycles
  • High protection: IP66, IP67 rated
  • Operates in -30 to 80°C environment
  • Snap action with roller lever actuation
  • Compliant with CCC, cULus, EN standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
250V AC
Terminal Type
Screw terminals
Thermal Test Current
10A

Mechanical

Actuator Type
Roller lever H200
Housing Material
Plastic, glass-fibre-reinforced

Dimensions & Physical Data

Depth
32.5mm
Height
112.5mm
Weight
0.19kg
Width
31mm

Environmental

IP Rating
IP66,IP67
Ambient Temperature
-40°C to 80°C
