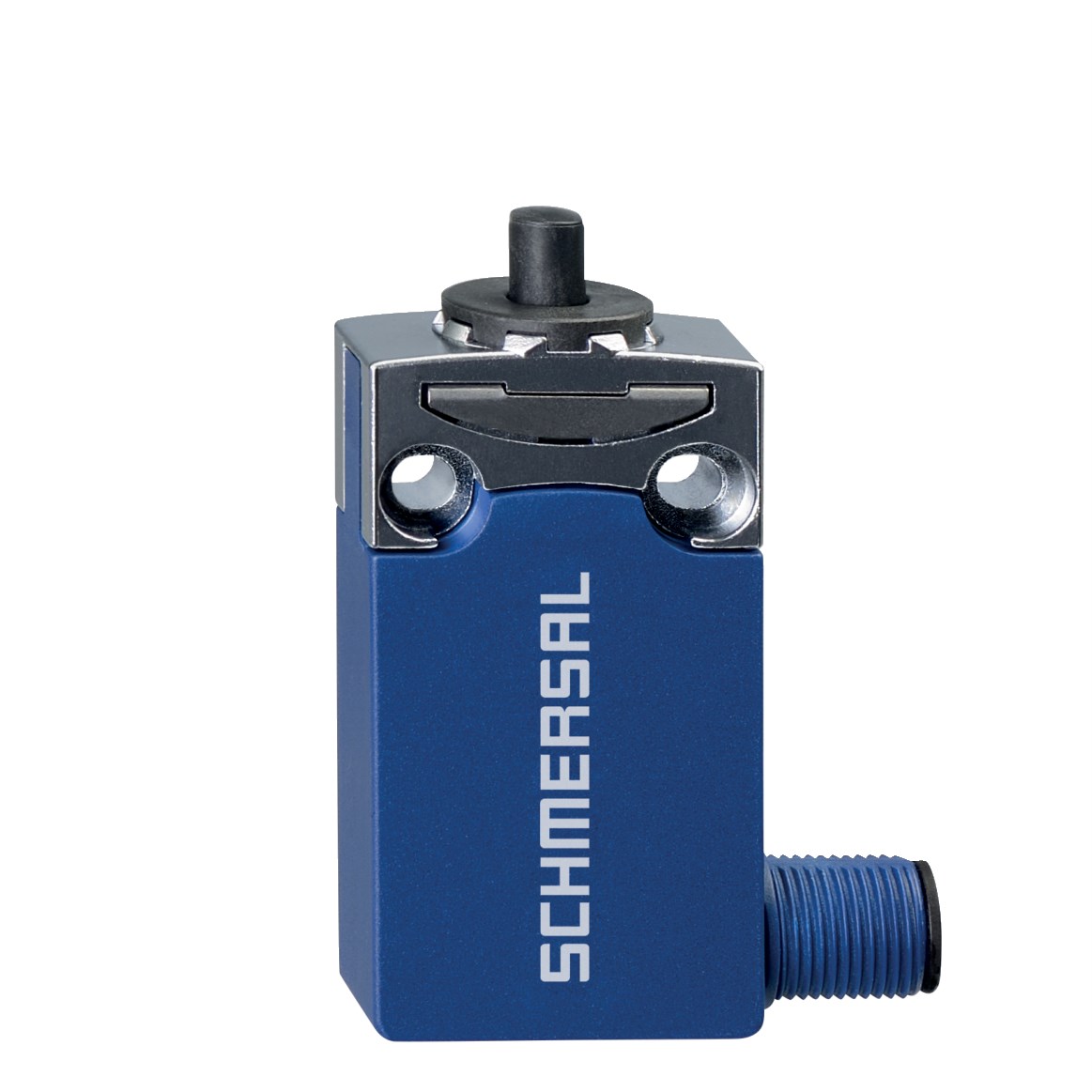

Schmersal 103013474 Position Switch with Safety Function 240VAC 1NO+2NC

Product Code: 103013474

  • 240 VAC, 1.5 A rated for reliable performance
  • Durable with 10 million mechanical cycles
  • IP66/IP67 protection for harsh environments
  • Operates in -30 to 80°C temperature range
  • Certified: CCC, cULus, EN IEC 60947-5-1
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
300V
Terminal Type
Connector M12, 6-pole

Mechanical

Actuator Type
Plunger S200
Housing Material
Plastic, glass-fibre reinforced thermoplastic, zinc die-cast, chromated

Dimensions & Physical Data

Depth
16.6mm
Height
64mm
Weight
0.055kg
Width
31mm

Environmental

IP Rating
IP66,IP67
Ambient Temperature
-40°C to 80°C

Documents

IPD Product Catalogue V17
