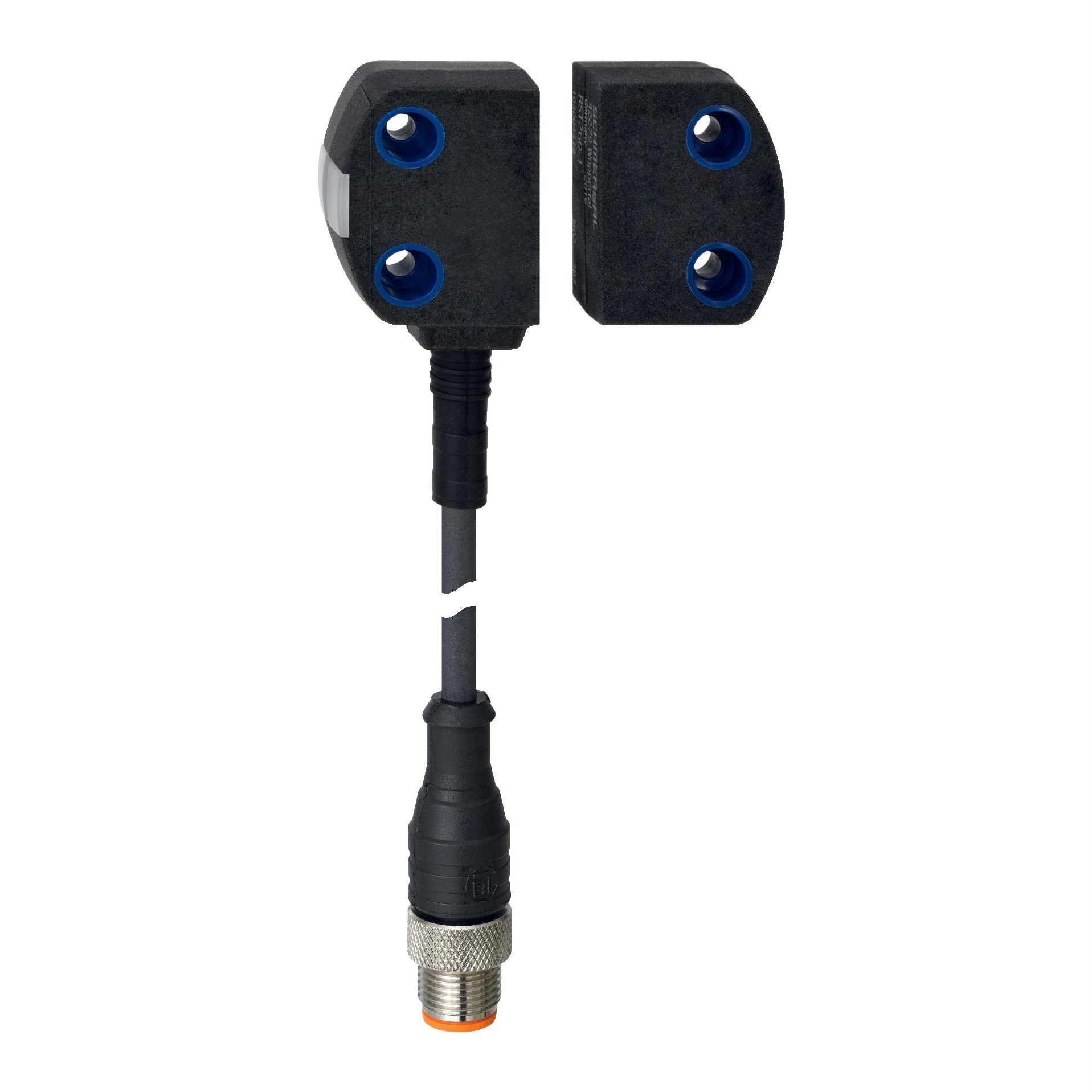

Schmersal 103013285 Electronic Safety Sensor

Product Code: 103013285

  • Operates at a frequency of 125 kHz
  • Not flush mounting design
  • 12 mm switching distance
  • Durable glass fibre reinforced plastic housing
  • Complies with EN ISO and IEC standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Electronic Safety Sensor (Rfid)
Brand
Schmersal
Series
RSS 260

Electrical

Plug Type
Cable with M12 connector, 8-pole
Rated Current (In)
0.6A
Rated Voltage (Ur)
24V DC

Mechanical

Actuator Type
RST-U-2, RST16-1, RST260-1
Housing Material
Plastic, thermoplastic, self-extinguishing

Dimensions & Physical Data

Depth
29.5mm
Height
18mm
Weight
0.077kg
Width
39.2mm
Cable Length
0.25m

Environmental

Operating Temperature
-28°C to 65°C
IP Rating
IP65, IP67

Documents

IPD Product Catalogue V17
