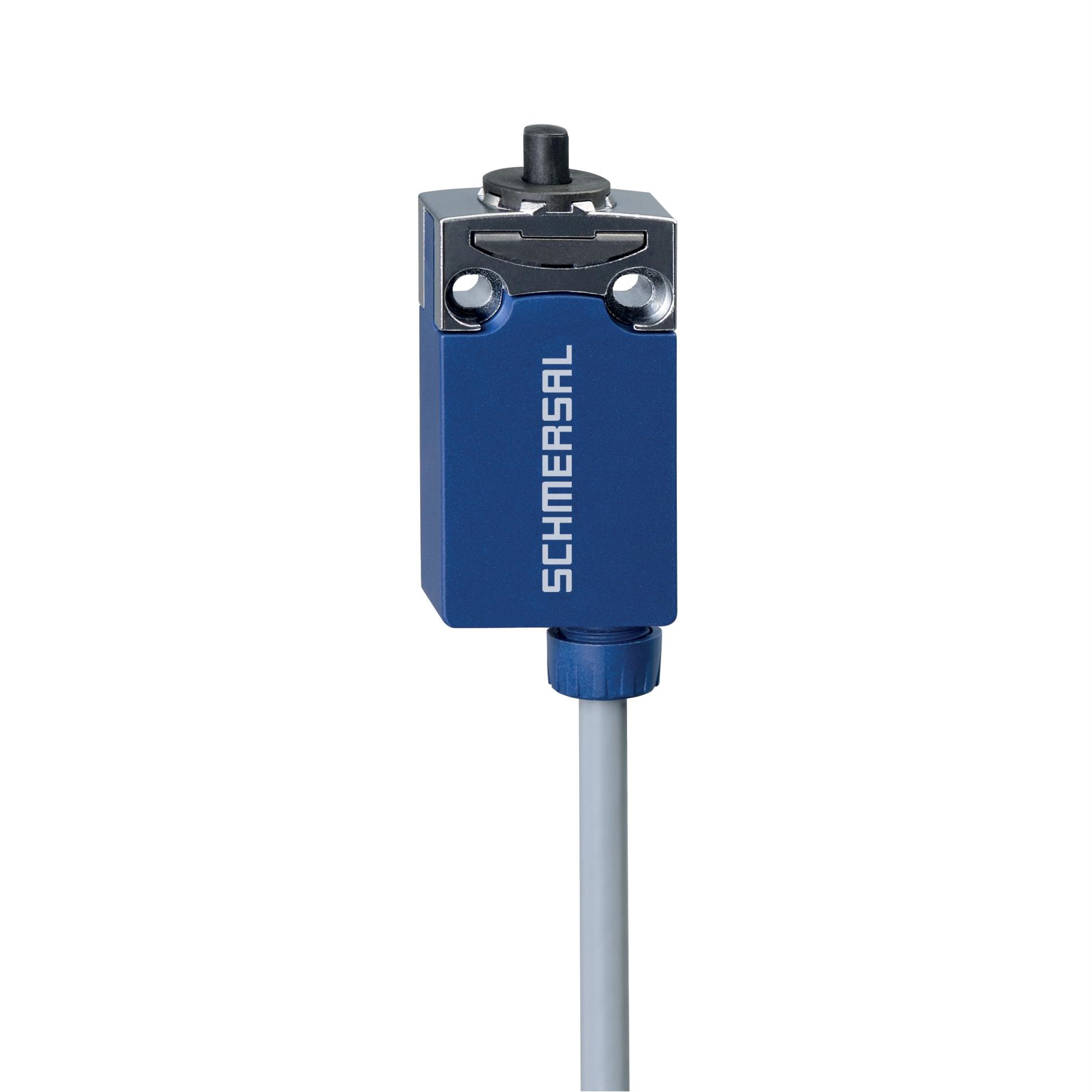

Schmersal 103010887 Position Switch with Safety Function 240VAC 2NO+1NC

Product Code: 103010887

  • Durable with 10 million mechanical cycles
  • IP66/IP67 for robust protection
  • Operates in -30 to 80°C range
  • Features slow action plunger
  • Certified by CCC, cULus, IEC standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
2
Rated Insulation Voltage (Ui)
300V
Terminal Type
Connector M12, 6-pole

Mechanical

Actuator Type
Plunger S200
Housing Material
Plastic, glass-fibre reinforced thermoplastic, zinc die-cast, chromated

Dimensions & Physical Data

Depth
16.6mm
Height
64mm
Weight
0.057kg
Width
31mm

Environmental

IP Rating
IP66,IP67
Ambient Temperature
-40°C to 80°C

Documents

IPD Product Catalogue V17
