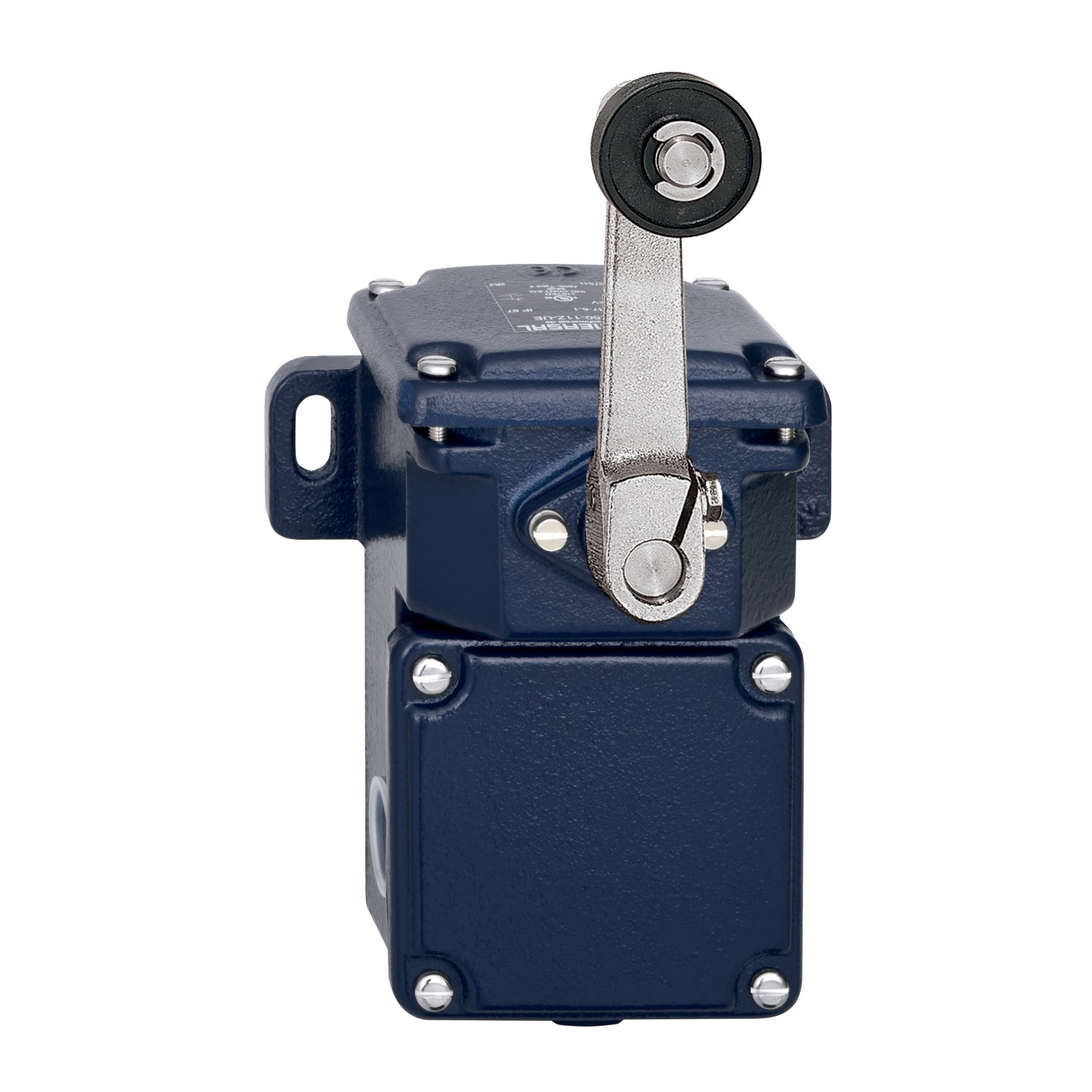

Schmersal 103010634 Position Switch Grey Cast Iron Galvanized Painted

Product Code: 103010634

  • Durable grey cast iron housing
  • Galvanized and painted finish
  • IP67 protection rating
  • Complies with IEC/EN60947-5-1 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
250 forked roller lever

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
250V
Rated Current (In)
4A (AC-15)
Rated Voltage (Ur)
250V AC (AC-15)
Terminal Type
Screw
Thermal Test Current
16A

Mechanical

Actuator Type
Forked roller lever
Contact Material
Gold-plated silver
Housing Material
Grey cast iron, galvanised

Dimensions & Physical Data

Depth
125mm
Height
257mm
Weight
4,508g
Width
146mm

Environmental

IP Rating
IP67
Ambient Temperature
-30°C to 90°C
