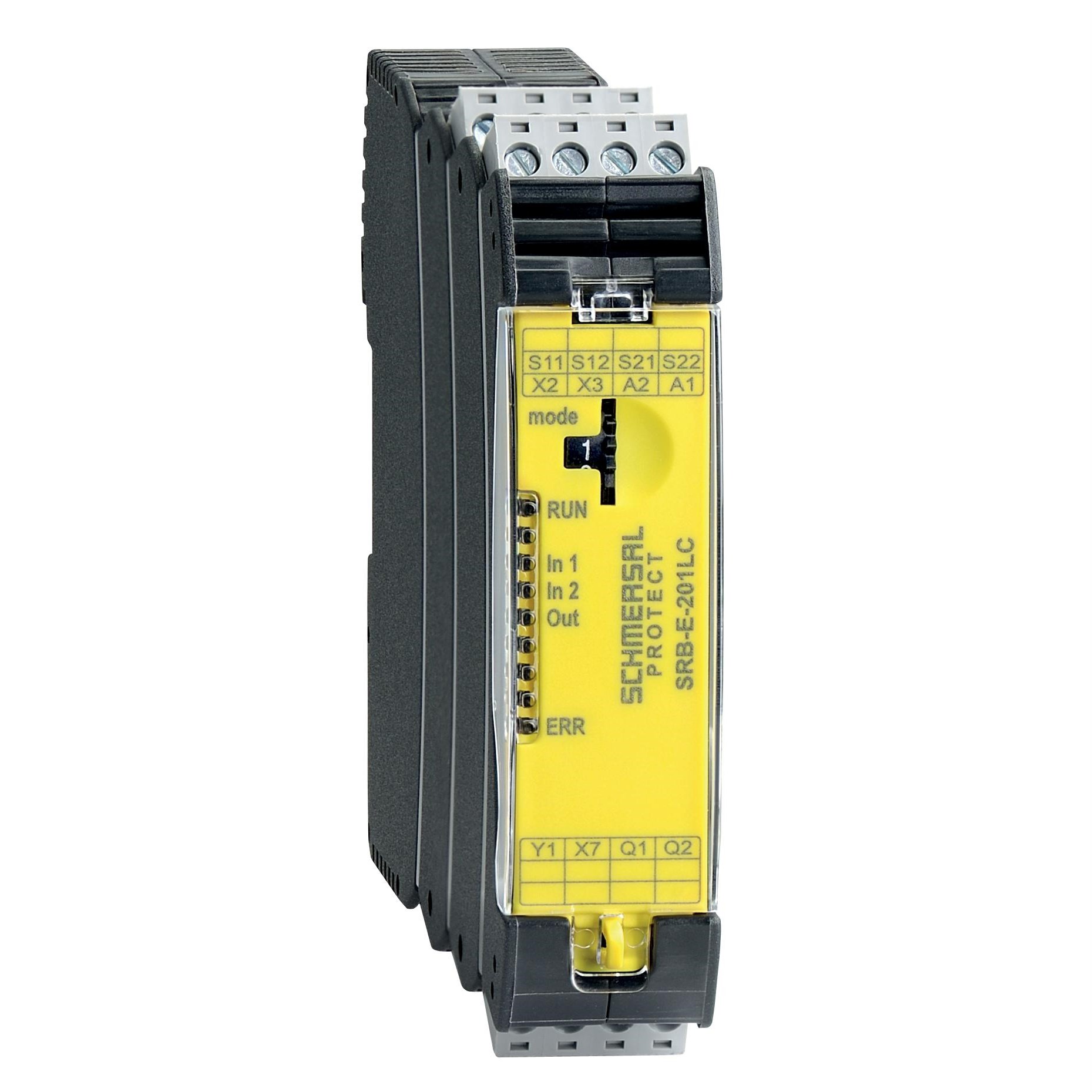

Schmersal 103009970 Multi-Function Safety Relay Module

Product Code: 103009970

  • Durable plastic with reinforced glass fibre housing
  • High protection: IP66, IP67 rated
  • Complies with EN IEC 60947-5-1 standards
  • Operates efficiently up to 60°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Multi - Function Safety Relay Module
Brand
Schmersal
Series
SRB-E-201LC

Electrical

Supply Current
100 mA
Switching Current
2:00 AM
Switching Voltage
24 V DC
Supply Voltage
24 V DC

Mechanical

Housing Material
Glass-fibre reinforced thermoplastic, ventilated

Dimensions & Physical Data

Depth
115 mm
Height
98 mm
Weight
130 g
Width
22.5 mm

Environmental

Operating Temperature
-25 to 60 °C
IP Rating
IP40, IP54, IP20

Safety, Standards & Compliance

Auxiliary Semiconductor Outputs
1
Safe Relay Outputs, Stop 0
0
Safe Semiconductor Outputs, Stop 1
0
Safe Semiconductor Outputs, Stop 0
2
Safe Relay Outputs, Stop 1
0
Safety Category
4
Safety Integrity Level
SIL 3
Monitoring Circuit
Yes
Performance Level
PL e
