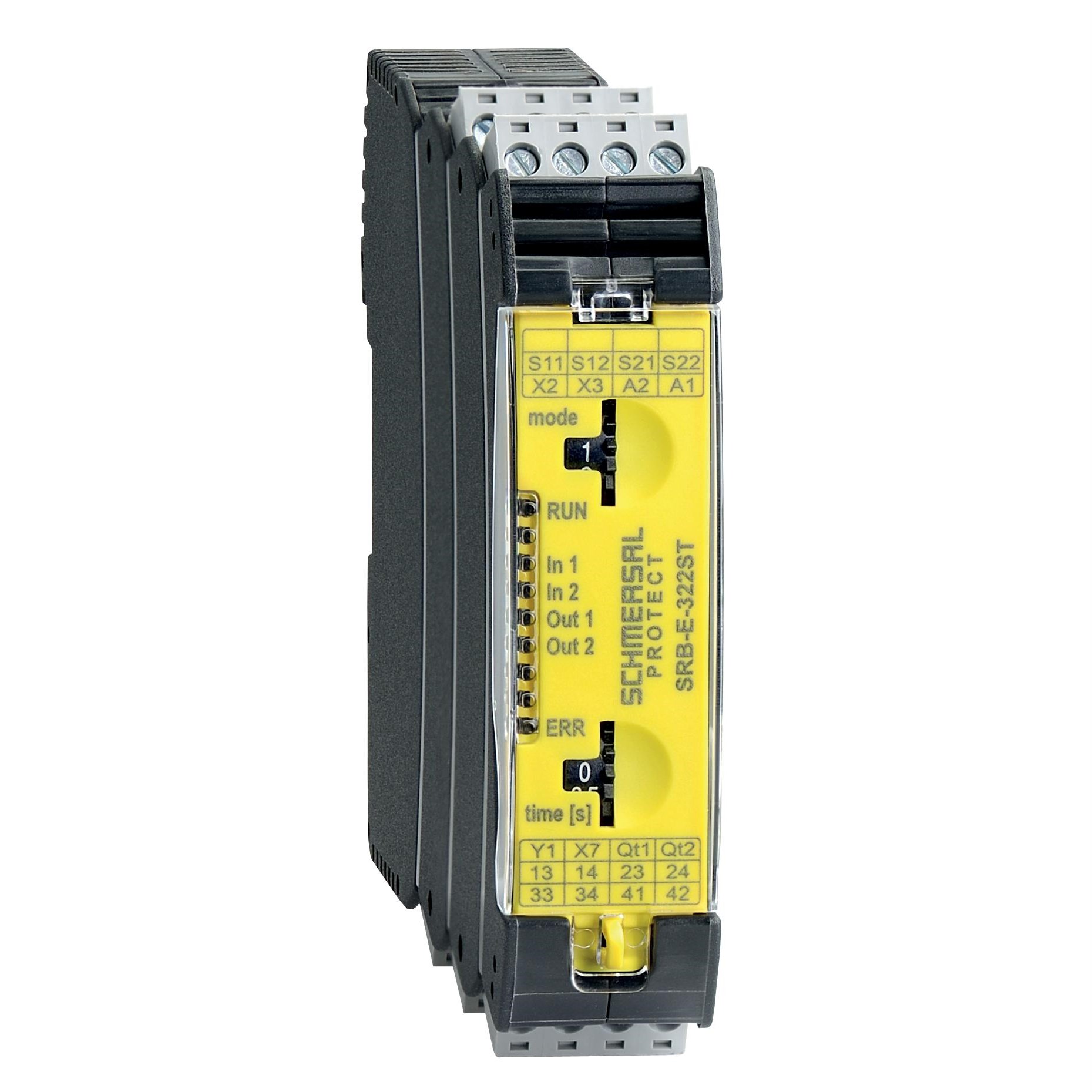

Schmersal 103008184 Multi-Function Safety Relay Module 24VDC

Product Code: 103008184

  • 24 VDC rated voltage for efficient operation
  • Compact 119.5 mm sensor size
  • Durable glass fibre reinforced thermoplastic housing
  • IP20 protection against solid objects
  • Complies with cULus, CCC, EAC standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Multi - Function Safety Relay Module
Brand
Schmersal
Series
SRB-E-322ST

Electrical

Switching Current
6:00 AM
Switching Voltage
250 V AC
Supply Voltage
24 V DC

Mechanical

Housing Material
Glass-fibre reinforced thermoplastic, ventilated

Dimensions & Physical Data

Depth
115 mm
Height
98 mm
Weight
180 g
Width
22.5 mm

Environmental

Operating Temperature
-25 to 60 °C
IP Rating
IP40, IP54, IP20

Safety, Standards & Compliance

Auxiliary Relay Outputs
1
Auxiliary Semiconductor Outputs
1
Safe Relay Outputs, Stop 0
3
Safe Semiconductor Outputs, Stop 1
2
Safe Semiconductor Outputs, Stop 0
0
Safe Relay Outputs, Stop 1
0
Safety Category
4
Safety Integrity Level
SIL 3
Monitoring Circuit
Yes
Performance Level
PL e
