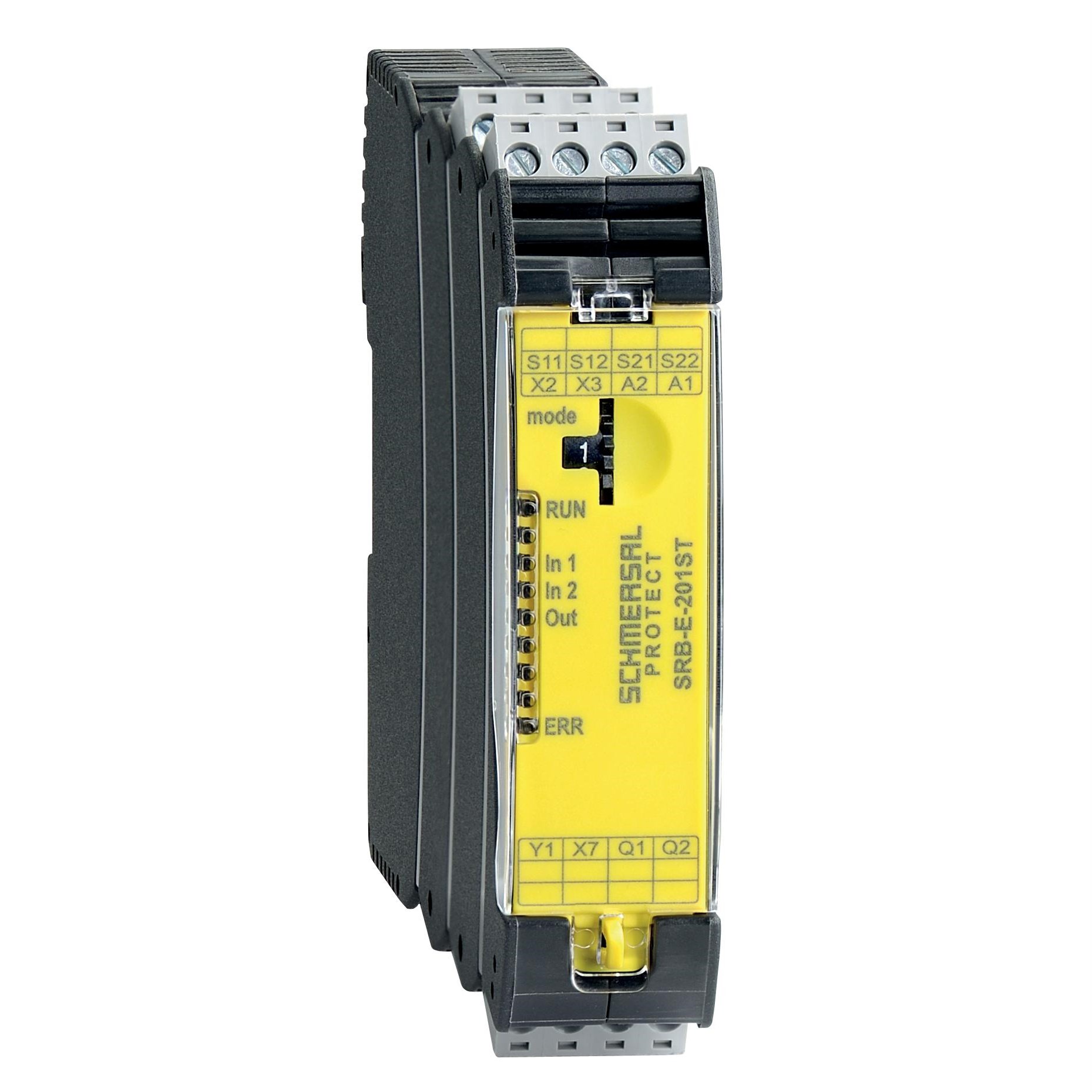

Schmersal 103008067 Multi-Function Safety Relay Module

Product Code: 103008067

  • Durable glass fibre reinforced thermoplastic housing
  • High protection with IP67 rating
  • Operates efficiently up to 80°C
  • Complies with multiple EN IEC safety standards
  • Compact sensor size of 91 mm L
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Multi - Function Safety Relay Module
Brand
Schmersal
Series
SRB-E-201ST

Electrical

Supply Current
0.1A
Switching Current
5.5A
Switching Voltage
24V DC
Supply Voltage
24V DC

Mechanical

Housing Material
Glass-fibre reinforced thermoplastic, ventilated

Dimensions & Physical Data

Depth
115mm
Height
98mm
Weight
0.13kg
Width
22.5mm

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP40, IP54, IP20

Safety, Standards & Compliance

Auxiliary Semiconductor Outputs
1
Safe Relay Outputs, Stop 0
0
Safe Semiconductor Outputs, Stop 1
0
Safe Semiconductor Outputs, Stop 0
2
Safe Relay Outputs, Stop 1
0
Safety Category
4
Safety Integrity Level
SIL 3
Monitoring Circuit
Yes
Performance Level
PL e

Documents
