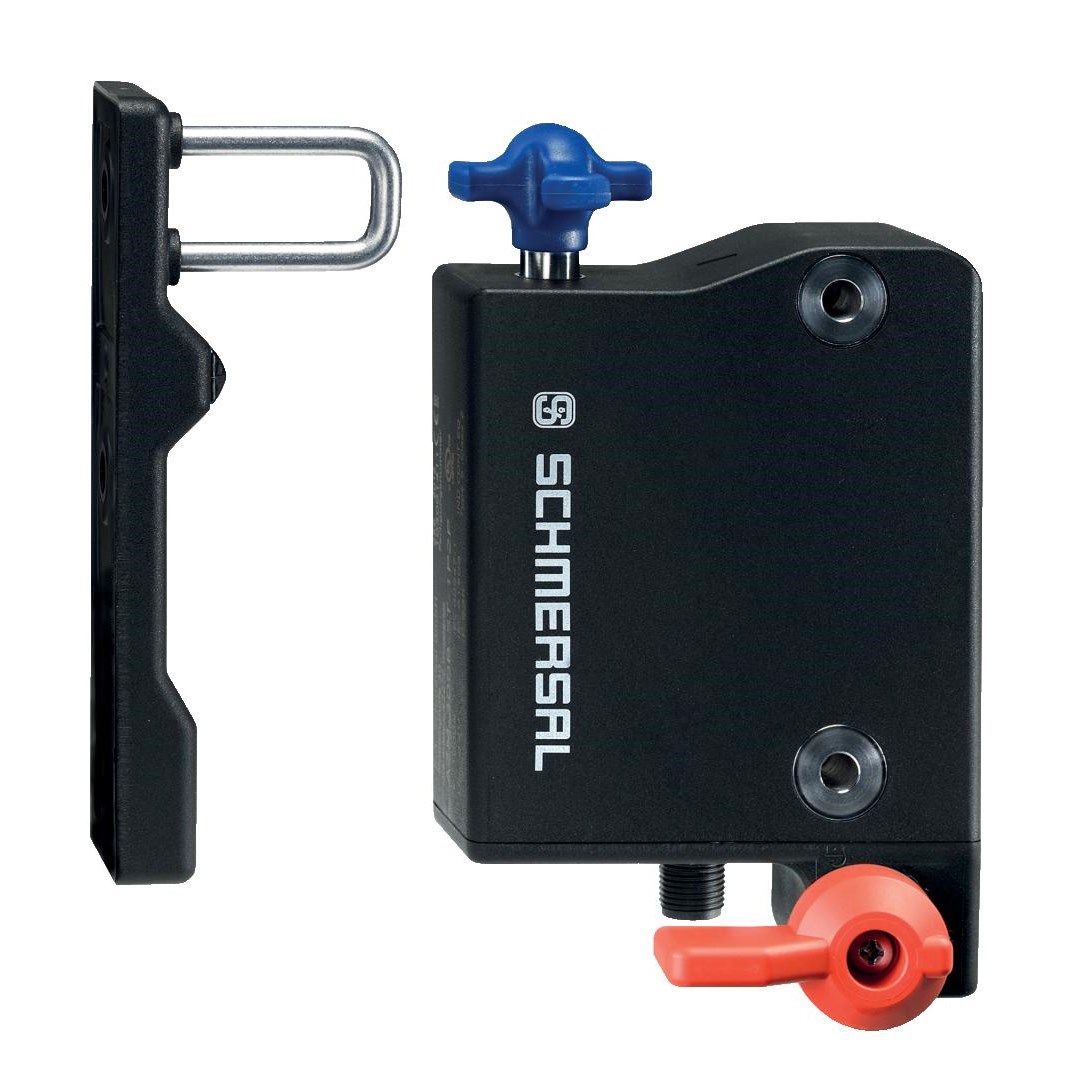

Schmersal 103006863 Solenid Interlock Switch

Product Code: 103006863

  • Durable grey cast iron housing
  • High protection with IP69 rating
  • Long life: 1 million mechanical cycles
  • Complies with EN ISO 13849-1 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
Schmersal
Series
AZM 300

Electrical

Rated Current (In)
0.8A
Rated Voltage (Ur)
24 VDC -15 % / +10 % (stabilised PELV power supply)

Mechanical

Actuator Type
AZ/AZM300-B1
Guard Locking Force
1,150N
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
146mm
Height
55mm
Weight
0.639kg
Width
87.5mm

Environmental

Operating Temperature
0°C to 60°C
IP Rating
IP66; IP69; IP67

Documents

IPD Product Catalogue V17
