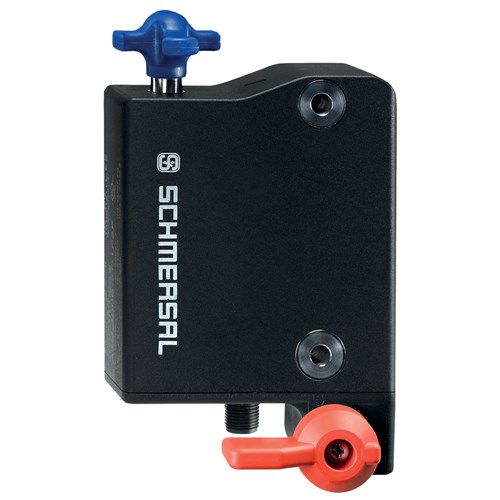

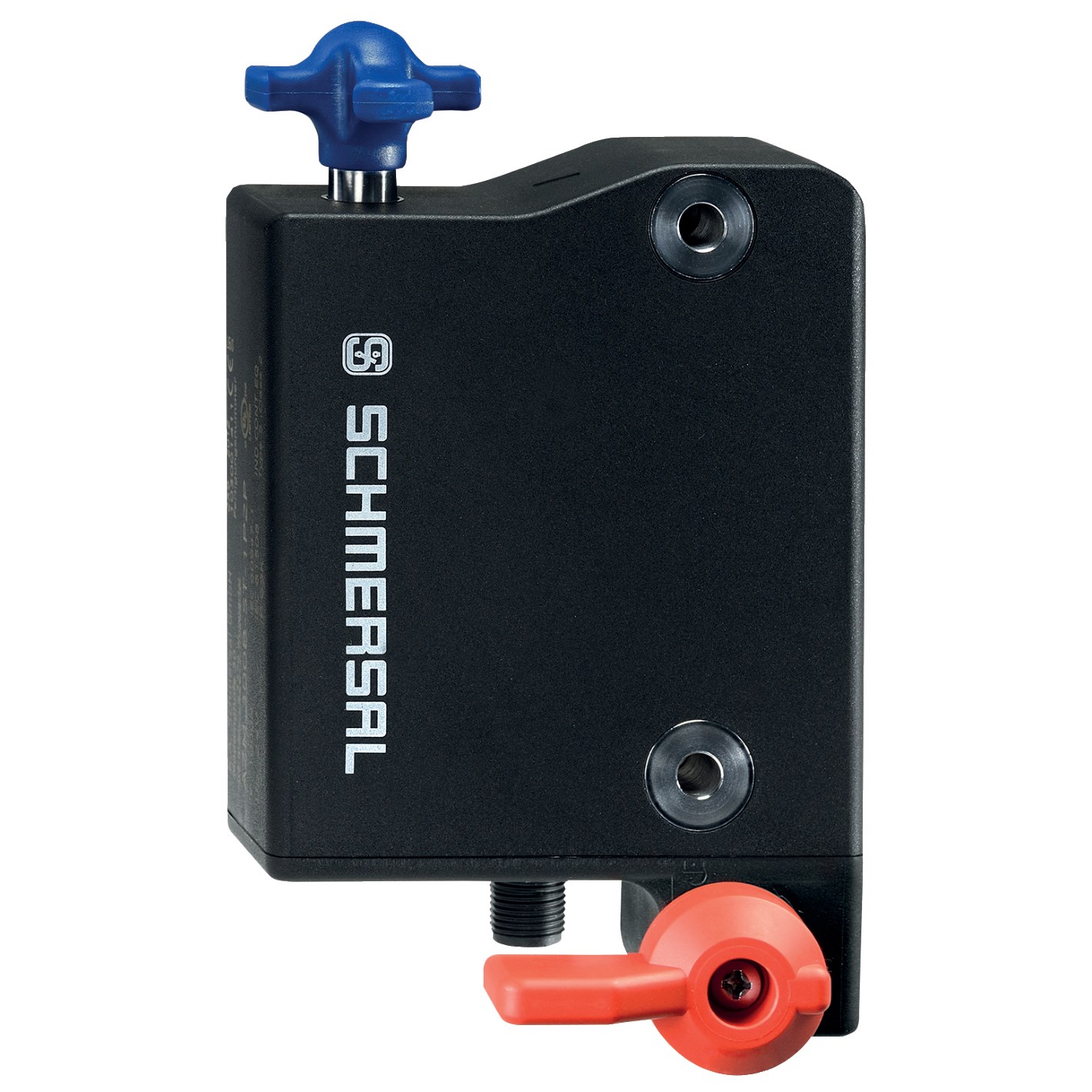

Schmersal 103006862 Solenid Interlock Switch

Product Code: 103006862

  • Durable glass fibre reinforced thermoplastic housing
  • High protection with IP66, IP67, IP69 ratings
  • Long-lasting: 1 million mechanical cycles
  • Complies with EN and IEC safety standards
  • Operates in temperatures from 0 to 60°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
Schmersal
Series
AZM 300

Electrical

Rated Current (In)
0.8A
Rated Voltage (Ur)
24 VDC -15 % / +10 % (stabilised PELV power supply)

Mechanical

Actuator Type
AZ/AZM300-B1
Guard Locking Force
1,150N
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
146mm
Height
55mm
Weight
0.61kg
Width
87.5mm

Environmental

Operating Temperature
0°C to 60°C
IP Rating
IP66; IP69; IP67

Documents

IPD Product Catalogue V17
