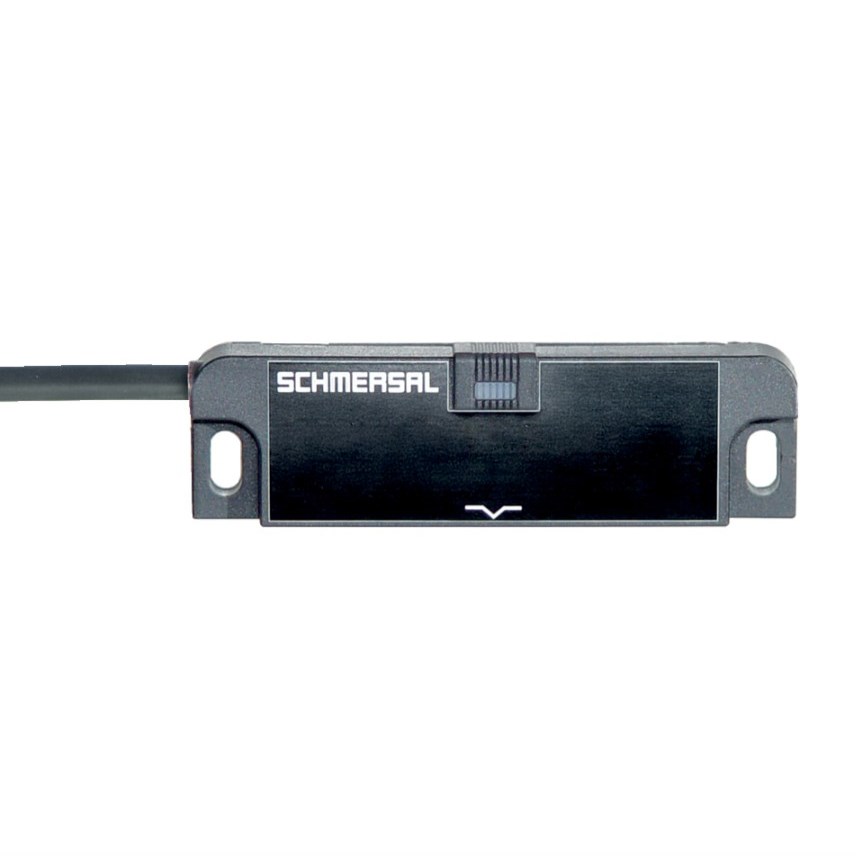

Schmersal 103006719 Safety Sensor 0.3m Cable

Product Code: 103006719

  • Cable length: 0.3 m
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS 36

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
0
Plug Type
Connecting cable with M8 connector, straight, 4-pole
Rated Current (In)
0.4A
Rated Voltage (Ur)
75V DC

Mechanical

Actuator Type
BPS 36-1-2750
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
13mm
Height
25mm
Weight
0.062kg
Width
88mm
Cable Length
0.3m

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
