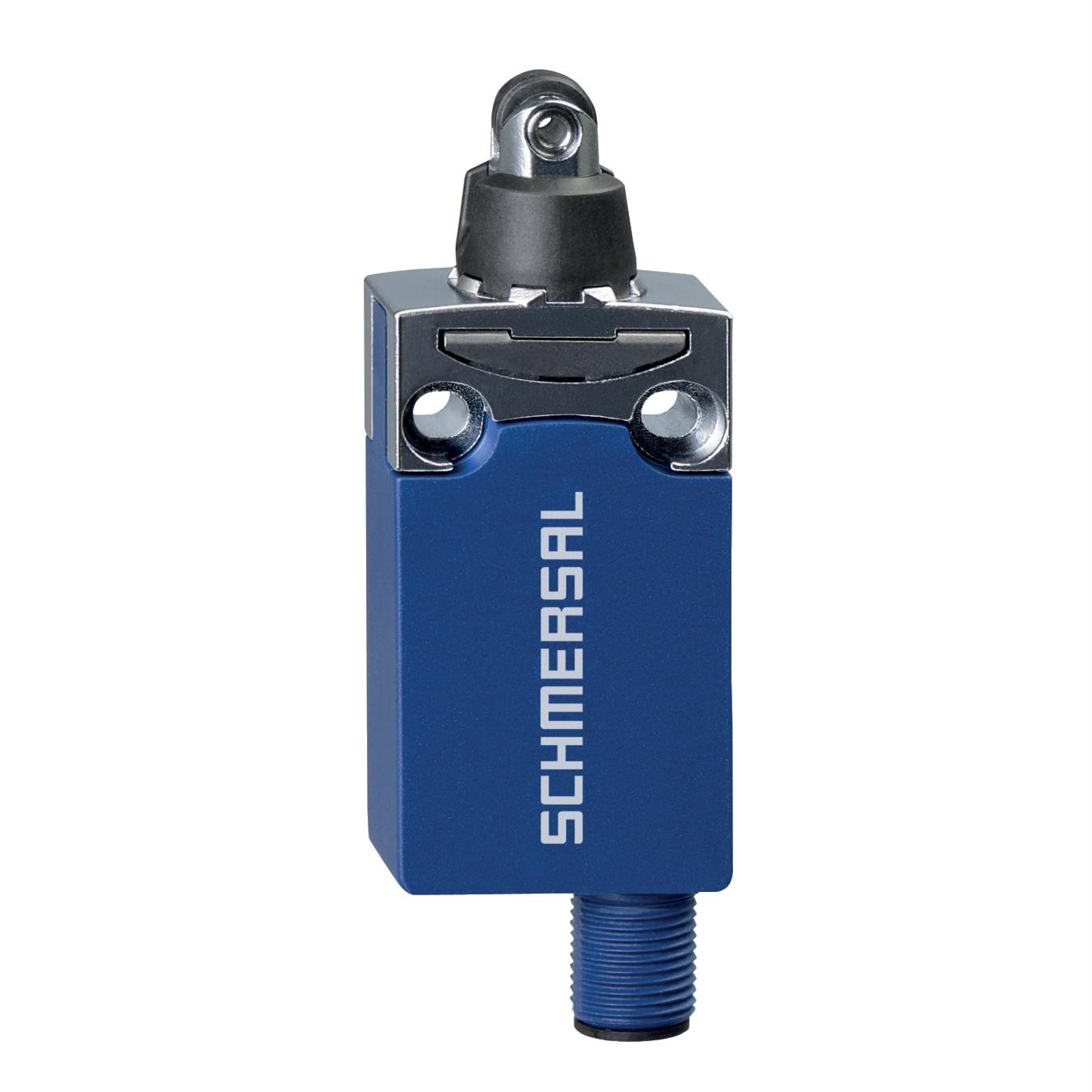

Schmersal 103006663 Position Switch with Safety Function 240VAC 1NO+2NC

Product Code: 103006663

  • Rated for 240 VAC, 1.5 A
  • Durable with 10M mechanical cycles
  • IP66/IP67 protection against dust/water
  • Operates in -30 to 80°C range
  • Compliant with CCC, cULus standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch (Modular Complete Device)
Brand
Schmersal
Series
PS116

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
1
Rated Current (In)
3A, 1.5A
Rated Voltage (Ur)
230V AC, 24V DC

Mechanical

Actuator Type
Roller plunger (thermoplastic), Type C (EN 50047)
Housing Material
Metal / thermoplastic enclosure

Dimensions & Physical Data

Depth
16.6mm
Height
52mm
Width
31mm

Environmental

Operating Temperature
-30°C to 80°C
IP Rating
IP66, IP67

Documents

IPD Product Catalogue V17
