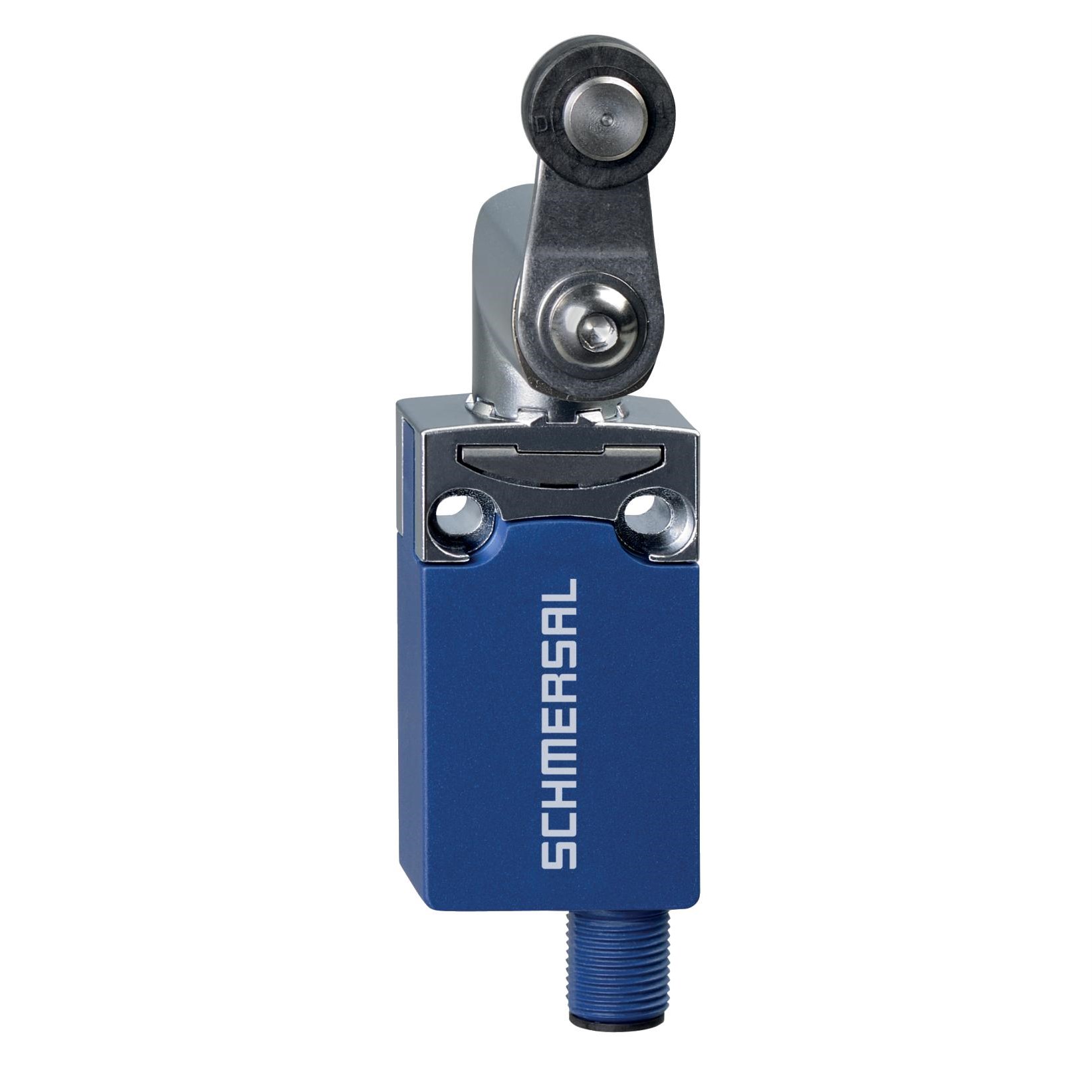

Schmersal 103006660 Position Switch with Safety Function 240VAC 1NO+1NC

Product Code: 103006660

  • Rated for 240 VAC, 1.5 A usage
  • Durable with 10M mechanical cycles
  • High protection: IP66/IP67 rated
  • Operates from -30 to 80°C
  • Complies with CCC, cULus, EN standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch (Modular Complete Device)
Brand
Schmersal
Series
PS116

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Current (In)
3A, 1.5A
Rated Voltage (Ur)
230V AC, 24V DC

Mechanical

Actuator Type
Roller lever (metal lever, plastic roller), Type A (EN 50047)
Housing Material
Metal / thermoplastic enclosure

Dimensions & Physical Data

Depth
16.6mm
Height
52mm
Width
31mm

Environmental

Operating Temperature
-30°C to 80°C
IP Rating
IP66, IP67
