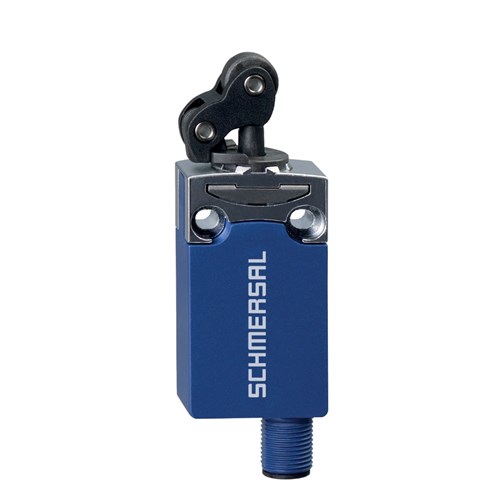

Schmersal 103006656 Position Switch with Safety Function 240VAC 1NO+1NC

Product Code: 103006656

  • Durable with 10 million cycle lifespan
  • High protection: IP66/IP67 rated
  • Operates in -30 to 80°C range
  • Snap action with offset roller lever
  • Complies with CCC, cULus standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
300V
Terminal Type
Connector M12, 4-pole

Mechanical

Actuator Type
Offset roller lever K210
Housing Material
Plastic, glass-fibre reinforced thermoplastic, zinc die-cast, chromated

Dimensions & Physical Data

Depth
16.6mm
Height
79mm
Weight
0.068kg
Width
31mm

Environmental

IP Rating
IP66,IP67
Ambient Temperature
-40°C to 80°C
