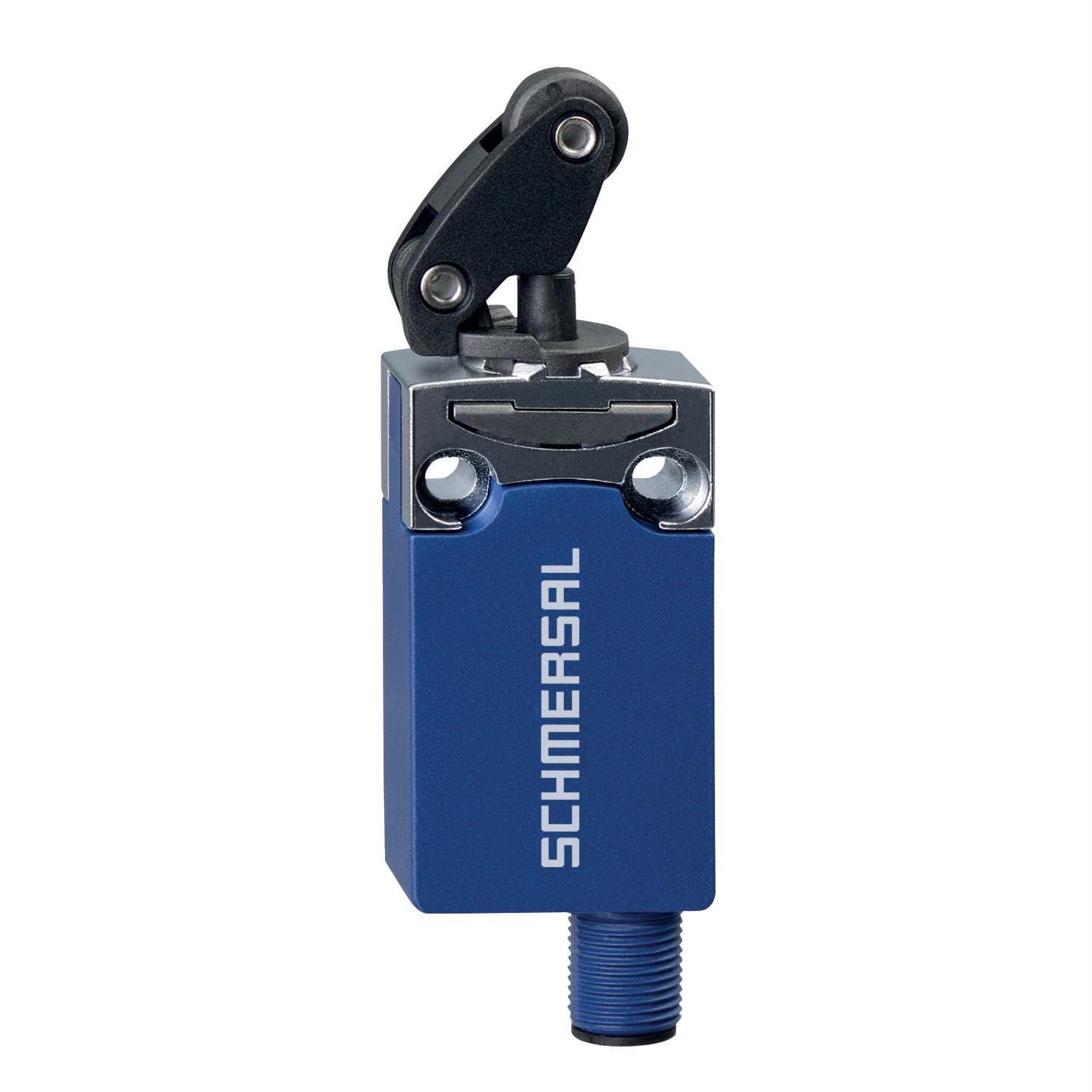

Schmersal 103006655 Position Switch with Safety Function 240VAC 1NO+1NC

Product Code: 103006655

  • Durable plastic with glass fibre reinforcement
  • High protection: IP66 & IP67 rated
  • Reliable snap action mechanism
  • Wide temp range: -30 to 80°C
  • Long mechanical life: 10 million cycles
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch (Modular Complete Device)
Brand
Schmersal
Series
PS116

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Current (In)
3A, 1.5A
Rated Voltage (Ur)
230V AC, 24V DC

Mechanical

Actuator Type
Offset roller lever (thermoplastic), Type E (EN 50047)
Housing Material
Metal / thermoplastic enclosure

Dimensions & Physical Data

Depth
16.6mm
Height
52mm
Width
31mm

Environmental

Operating Temperature
-30°C to 80°C
IP Rating
IP66, IP67

Documents

IPD Product Catalogue V17
