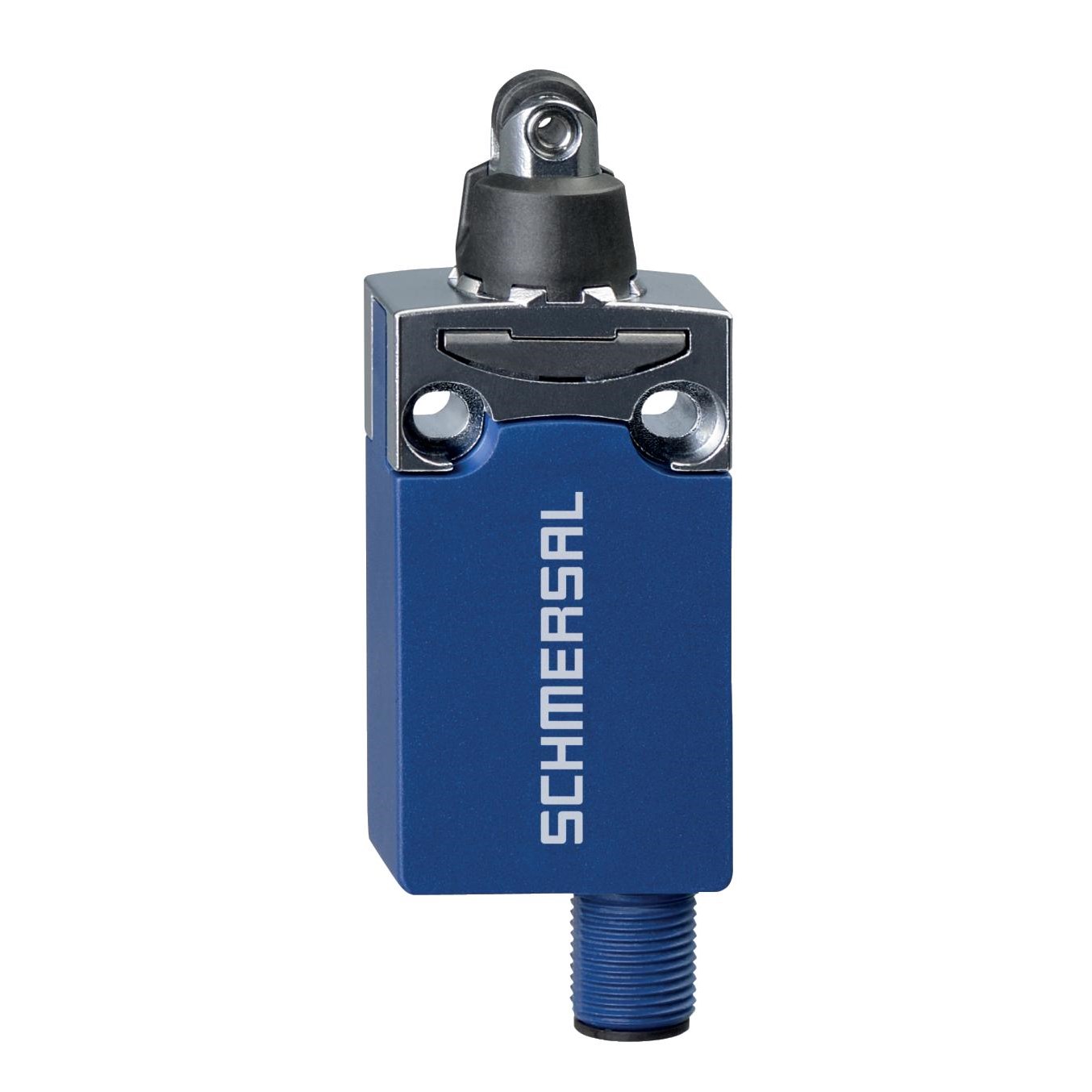

Schmersal 103006653 Position Switch with Safety Function 240VAC 1NO+1NC

Product Code: 103006653

  • Rated for 240 VAC and 1.5 A.
  • Durable with 10 million cycles.
  • IP66/IP67 protection for harsh environments.
  • Operates in -30 to 80°C temperature range.
  • Snap action with roller plunger actuator.
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
300V
Terminal Type
Connector M12, 4-pole

Mechanical

Actuator Type
Roller plunger R200
Housing Material
Plastic, glass-fibre reinforced thermoplastic, zinc die-cast, chromated

Dimensions & Physical Data

Depth
16.6mm
Height
74.1mm
Weight
0.14kg
Width
31mm

Environmental

IP Rating
IP66,IP67
Ambient Temperature
-40°C to 80°C
