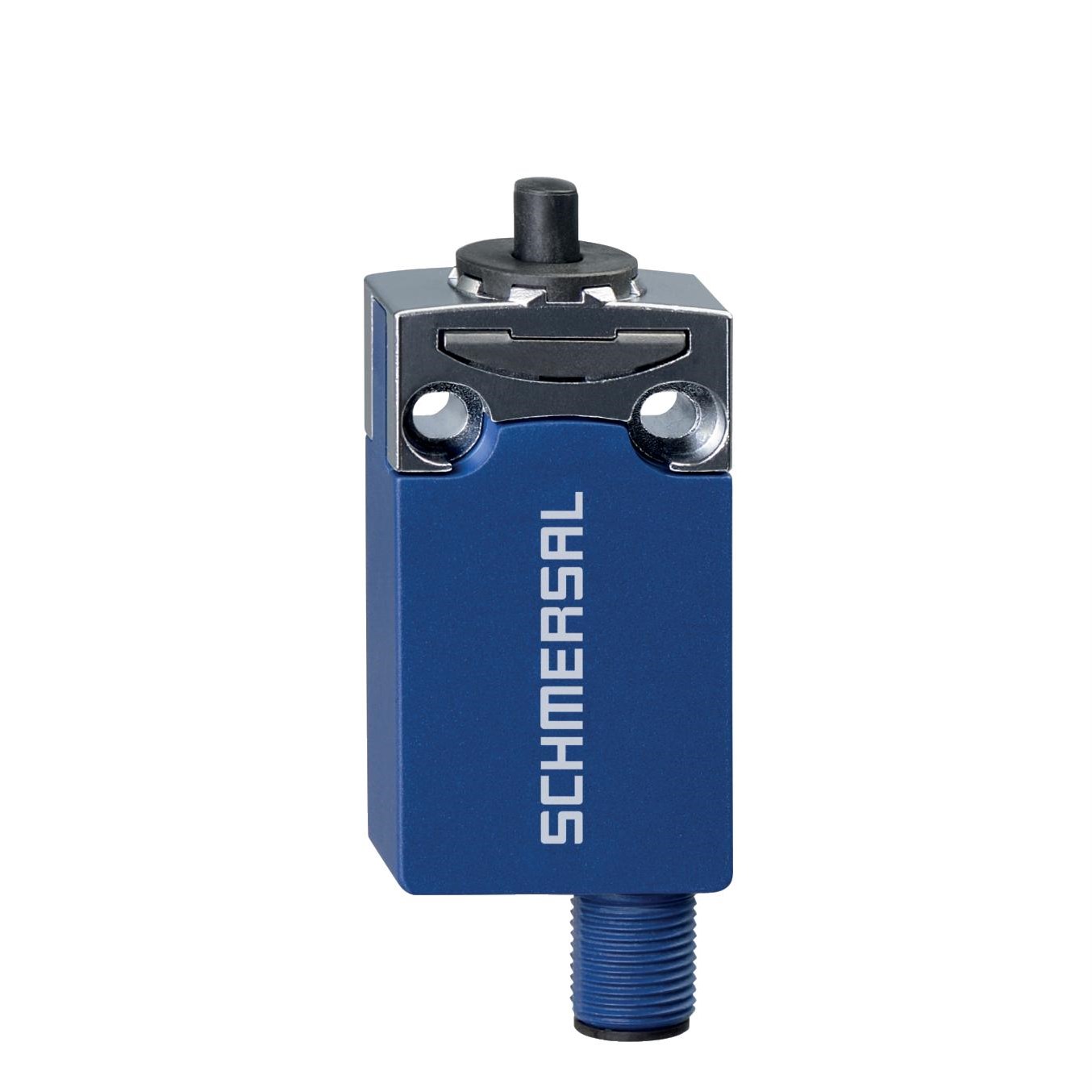

Schmersal 103006651 Position Switch with Safety Function 240VAC 1NO+1NC

Product Code: 103006651

  • Durable thermoplastic housing, IP66/IP67 rated
  • Plunger shape S200 for precise actuation
  • Operates in -30 to 80°C temperature range
  • Long mechanical life: 10 million cycles
  • Complies with CCC, cULus, EN IEC standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
300V
Terminal Type
Connector M12, 4-pole

Mechanical

Actuator Type
Plunger S200
Housing Material
Plastic, glass-fibre reinforced thermoplastic, zinc die-cast, chromated

Dimensions & Physical Data

Depth
16.6mm
Height
64mm
Weight
0.064kg
Width
31mm

Environmental

IP Rating
IP66,IP67
Ambient Temperature
-40°C to 80°C
