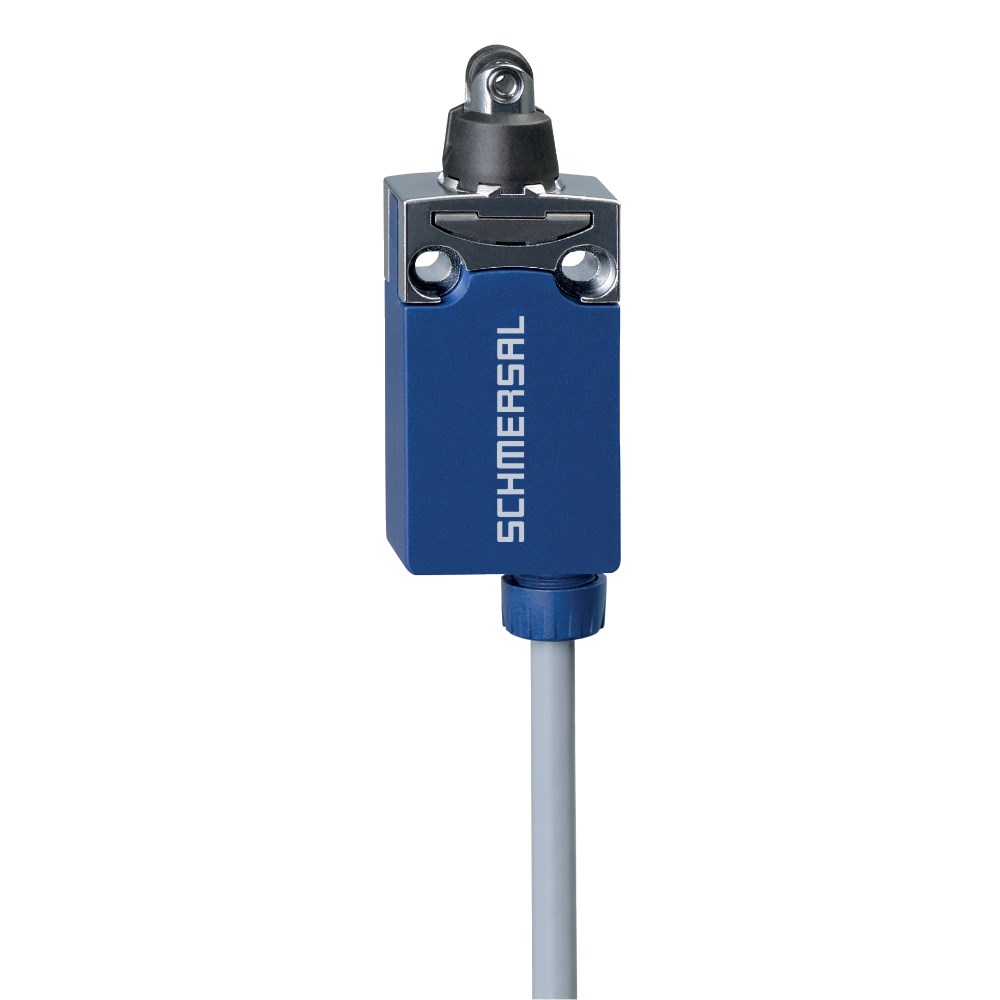

Schmersal 103006648 Position Switch with Safety Function 240VAC 1NO+2NC

Product Code: 103006648

  • Durable plastic, glass fibre reinforced housing
  • High protection with IP66/IP67 rating
  • Long mechanical life of 10 million cycles
  • Wide operating temp: -30 to 80°C
  • Complies with CCC, cULus, EN IEC 60947 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
300V
Terminal Type
Pre-wired cable Cable, 6-pole

Mechanical

Actuator Type
Roller plunger R200
Housing Material
Plastic, glass-fibre reinforced thermoplastic, zinc die-cast, chromated

Dimensions & Physical Data

Depth
16.6mm
Height
74.1mm
Weight
0.21kg
Width
31mm
Cable Length
2m

Environmental

IP Rating
IP66,IP67
Ambient Temperature
-40°C to 80°C

Documents

IPD Product Catalogue V17
