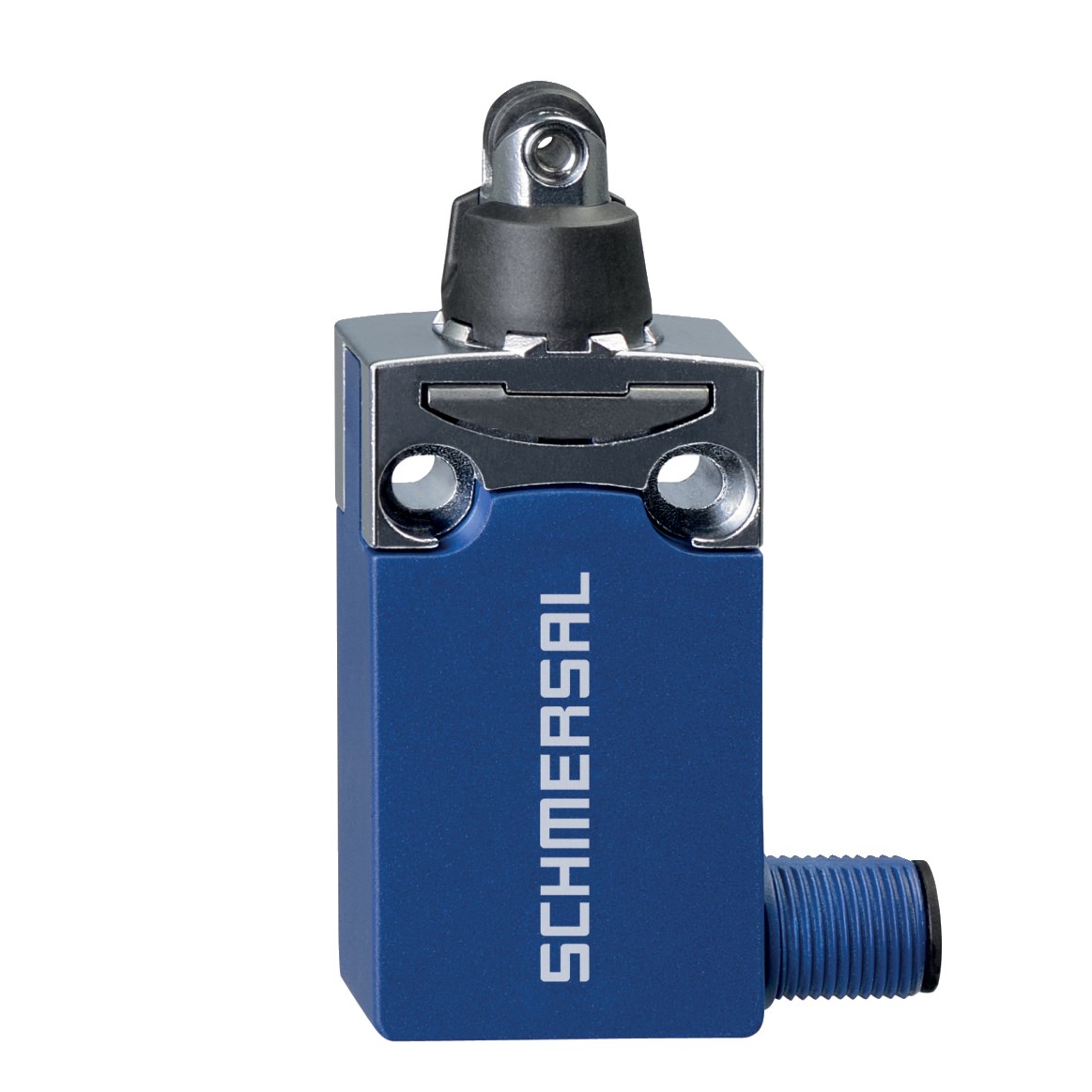

Schmersal 103006600 Position Switch with Safety Function 240VAC 1NO+1NC

Product Code: 103006600

  • Operates at 240 VAC, 1.5 A
  • Durable with 10 million cycles
  • IP66/IP67 protection rating
  • Roller plunger actuator
  • Temp range: -30 to 80°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
300V
Terminal Type
Pre-wired cable Cable, 6-pole

Mechanical

Actuator Type
Roller lever N200
Housing Material
Plastic, glass-fibre reinforced thermoplastic, zinc die-cast, chromated

Dimensions & Physical Data

Depth
16.6mm
Height
139mm
Weight
0.257kg
Width
31mm
Cable Length
2m

Environmental

IP Rating
IP66,IP67
Ambient Temperature
-40°C to 80°C

Documents

IPD Product Catalogue V17
