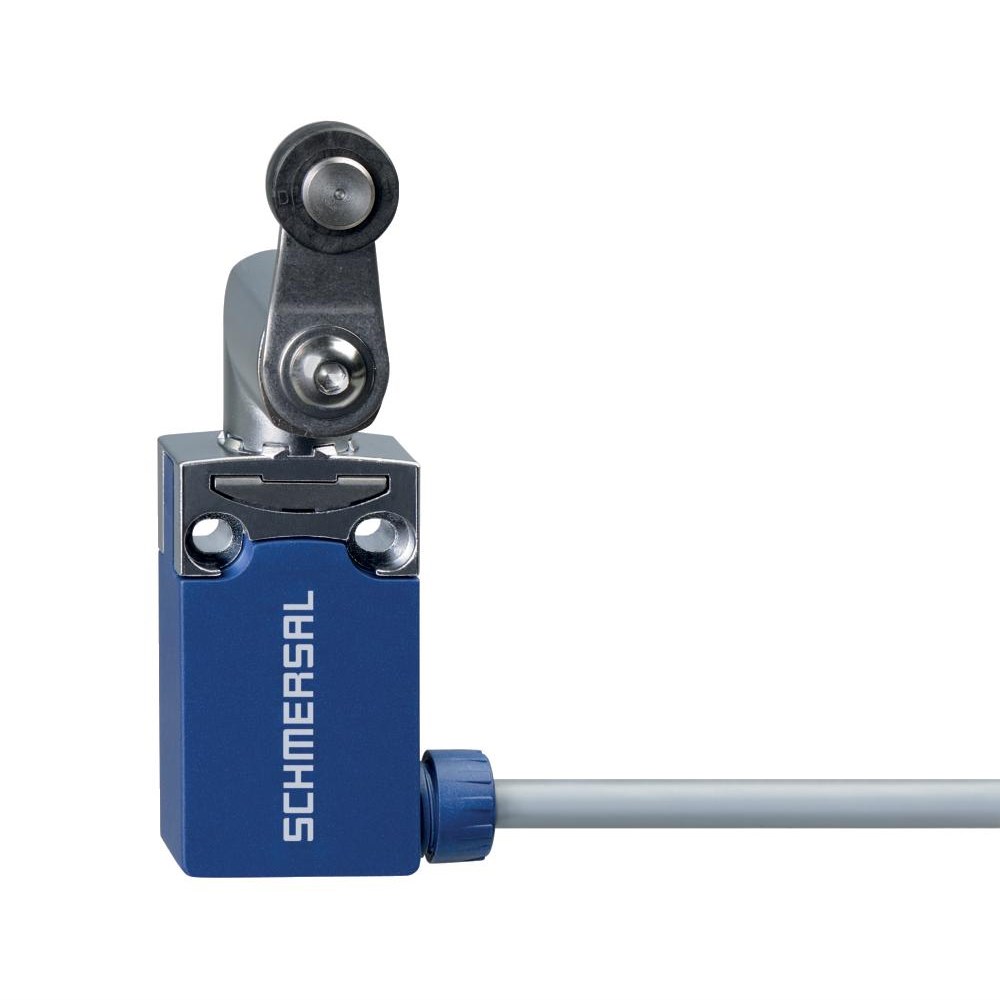

Schmersal 103006593 Position Switch with Safety Function

Product Code: 103006593

  • Durable aluminium housing
  • High protection rating of IP67
  • Operational temp: -30 to 80°C
  • Complies with EN ISO 13849-1
  • Long mechanical life: 1,000,000 cycles
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
300V
Terminal Type
Pre-wired cable Cable, 6-pole

Mechanical

Actuator Type
Angle roller lever K240
Housing Material
Plastic, glass-fibre reinforced thermoplastic, zinc die-cast, chromated

Dimensions & Physical Data

Depth
16.6mm
Height
95.5mm
Weight
0.15kg
Width
31mm
Cable Length
2m

Environmental

IP Rating
IP66,IP67
Ambient Temperature
-40°C to 80°C

Documents

IPD Product Catalogue V17
