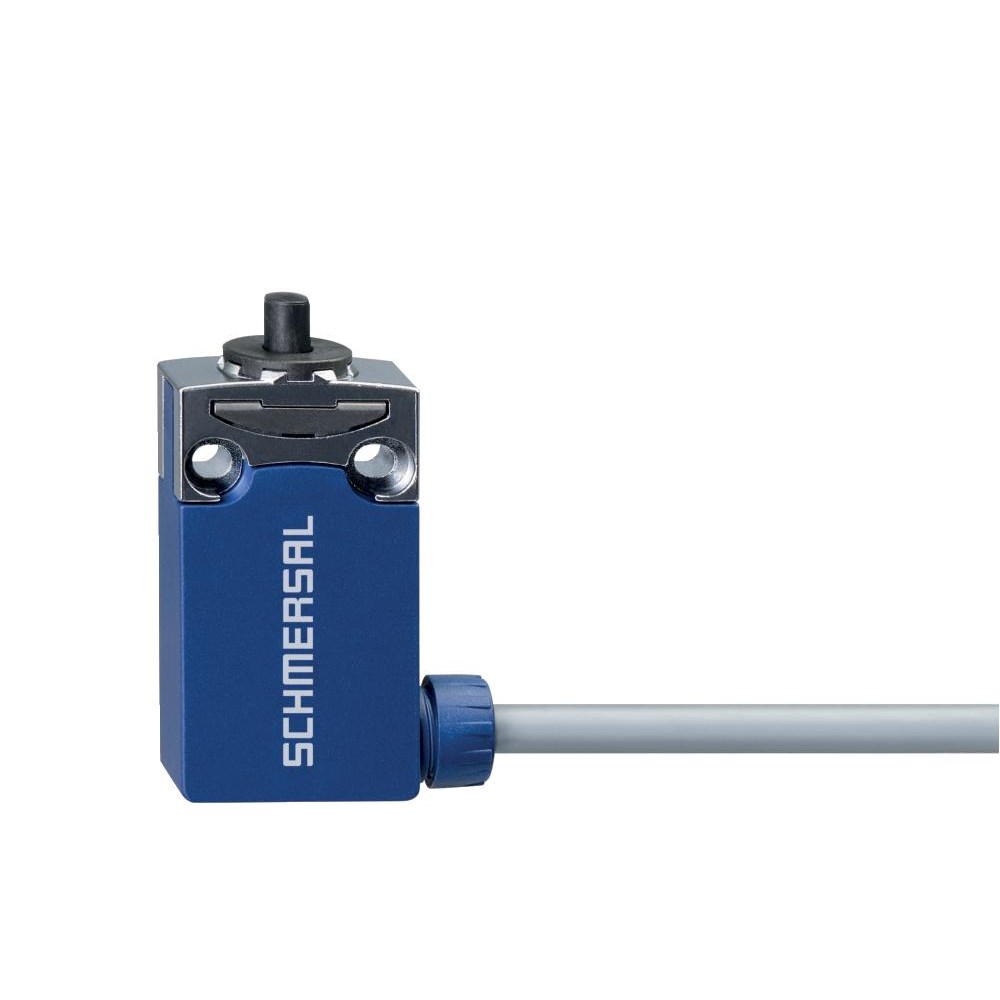

Schmersal 103006587 Position Switch with Safety Function 240VAC 1NO+2NC

Product Code: 103006587

  • Rated for 240 VAC, 1.5 A load
  • Durable with 10 million cycles lifespan
  • IP66/IP67 protection against dust and water
  • Operates in -30 to 80°C temperature range
  • Snap action mechanism for quick response
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
300V
Terminal Type
Pre-wired cable Cable, 6-pole

Mechanical

Actuator Type
Roller plunger R200
Housing Material
Plastic, glass-fibre reinforced thermoplastic, zinc die-cast, chromated

Dimensions & Physical Data

Depth
16.6mm
Height
74.1mm
Weight
0.14kg
Width
31mm
Cable Length
2m

Environmental

IP Rating
IP66,IP67
Ambient Temperature
-40°C to 80°C
