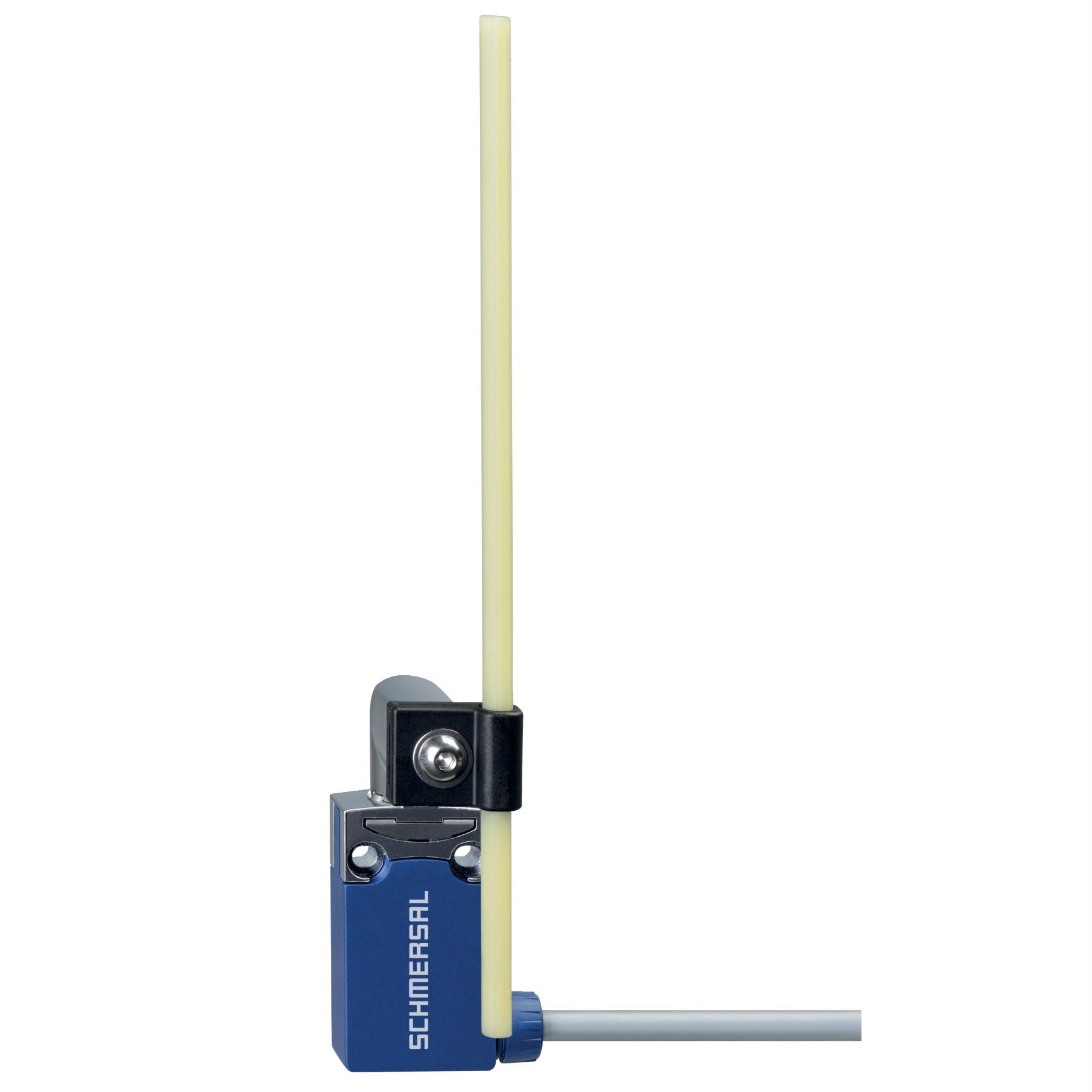

Schmersal 103006581 Position Switch 240VAC 1NO+1NC

Product Code: 103006581

  • Rated 240 VAC, 4 A for reliable performance
  • Durable with 10 million mechanical cycles
  • Robust IP67 protection against dust and water
  • Operates in -30 to 80°C temperature range
  • Snap action contacts for quick response
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
300V
Terminal Type
Pre-wired cable Cable, 4-pole

Mechanical

Actuator Type
Roller lever N200
Housing Material
Plastic, glass-fibre reinforced thermoplastic, zinc die-cast, chromated

Dimensions & Physical Data

Depth
16.6mm
Height
139mm
Weight
0.2kg
Width
31mm
Cable Length
2m

Environmental

IP Rating
IP66,IP67
Ambient Temperature
-40°C to 80°C

Documents

IPD Product Catalogue V17
