Products

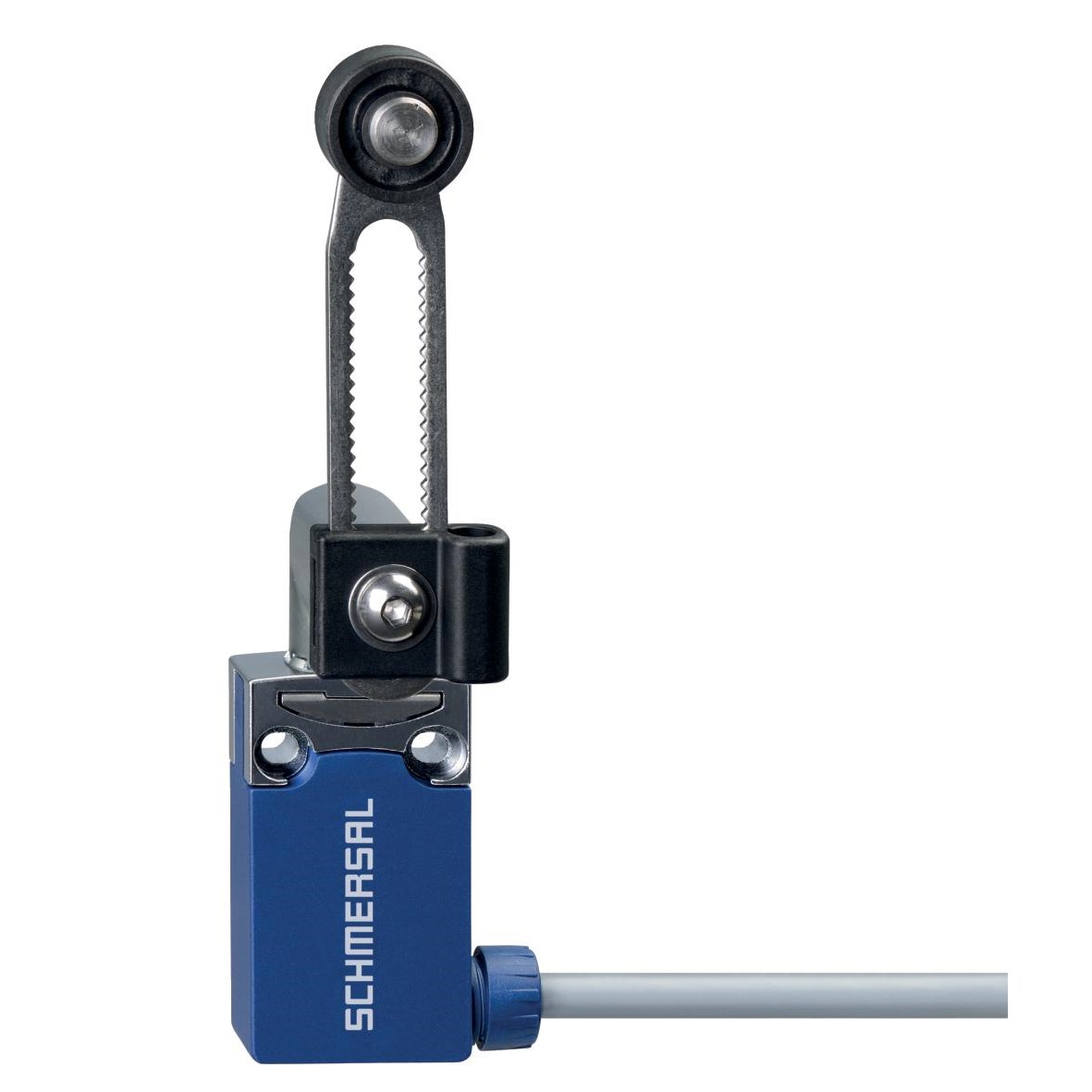

Schmersal 103006580 Position Switch with Safety Function 240VAC 1NO+1NC

Product Code: 103006580

  • Durable design with 10M mechanical cycles
  • IP66/IP67 for robust environmental protection
  • Operates in temps from -30 to 80°C
  • Roller lever for precise actuation
  • Meets CCC, cULus, EN IEC standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
300V
Terminal Type
Pre-wired cable Cable, 4-pole

Mechanical

Actuator Type
Roller lever N200
Housing Material
Plastic, glass-fibre reinforced thermoplastic, zinc die-cast, chromated

Dimensions & Physical Data

Depth
16.6mm
Height
139mm
Weight
0.1kg
Width
31mm
Cable Length
2m

Environmental

IP Rating
IP66,IP67
Ambient Temperature
-40°C to 80°C

Documents

IPD Product Catalogue V17
