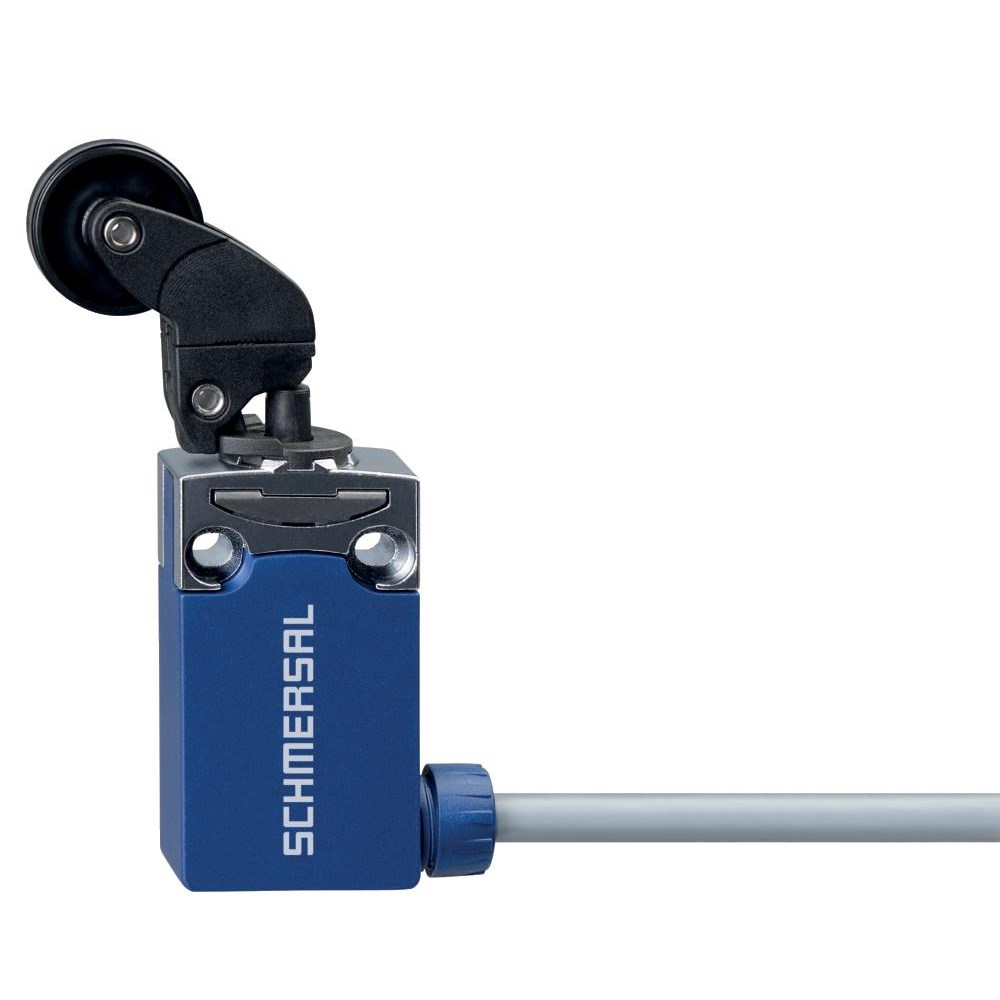

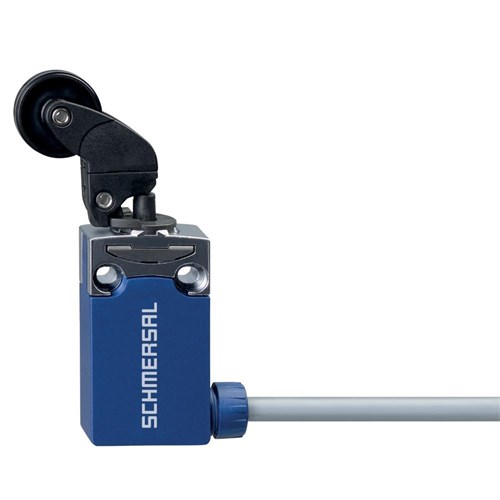

Schmersal 103006575 Position Switch with Safety Function 240VAC 1NO+1NC

Product Code: 103006575

  • Durable glass fibre reinforced thermoplastic housing
  • High protection rating: IP66, IP67
  • Long mechanical life of 20 million cycles
  • Operates in temperatures from -30 to 80°C
  • Certified by CCC, cULus, EN IEC standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
300V
Terminal Type
Pre-wired cable Cable, 4-pole

Mechanical

Actuator Type
Angle roller lever K240
Housing Material
Plastic, glass-fibre reinforced thermoplastic, zinc die-cast, chromated

Dimensions & Physical Data

Depth
16.6mm
Height
95.5mm
Weight
0.15kg
Width
31mm
Cable Length
2m

Environmental

IP Rating
IP66,IP67
Ambient Temperature
-40°C to 80°C
