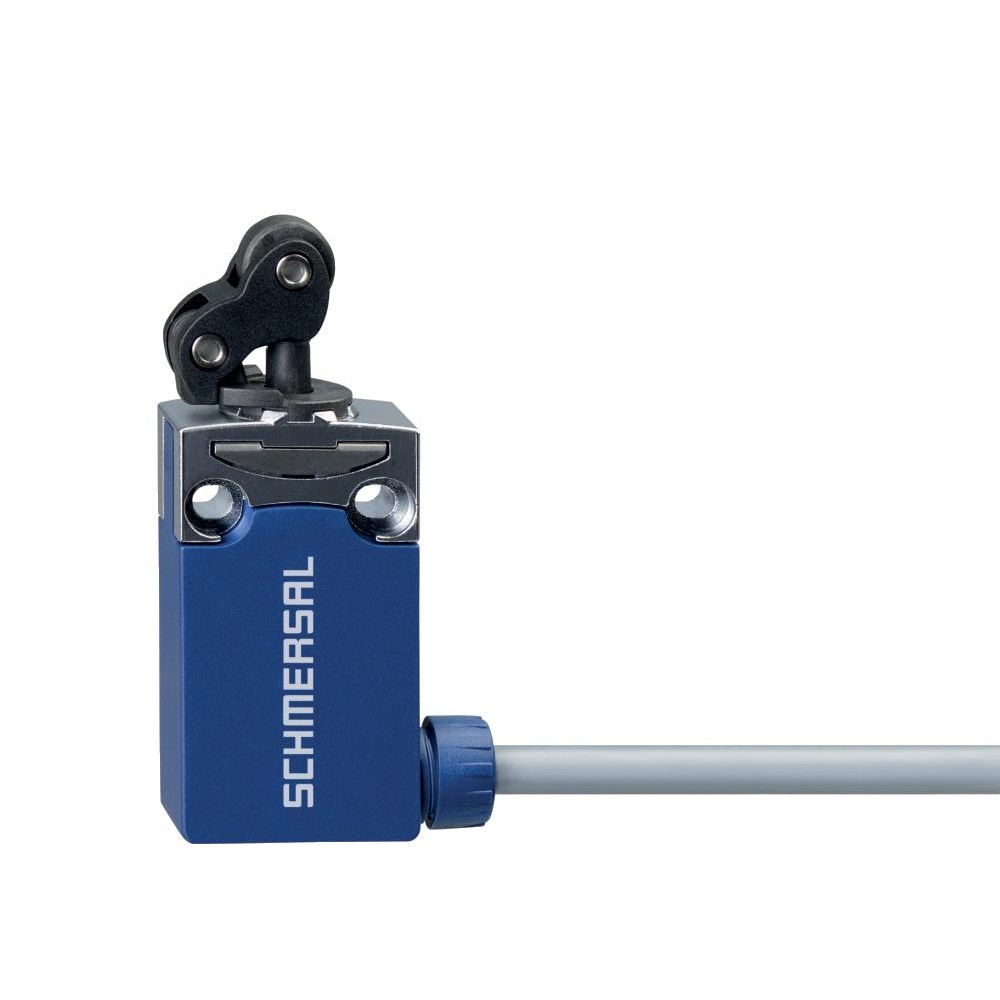

Schmersal 103006570 Position Switch with Safety Function 240VAC 1NO+1NC

Product Code: 103006570

  • Durable IP66/IP67 rated protection
  • Long mechanical life of 10 million cycles
  • Operates in -30 to 80°C temperature range
  • Offset roller lever for precise actuation
  • Meets EN IEC 60947-5-1 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
300V
Terminal Type
Pre-wired cable Cable, 4-pole

Mechanical

Actuator Type
Offset roller lever K210
Housing Material
Plastic, glass-fibre reinforced thermoplastic, zinc die-cast, chromated

Dimensions & Physical Data

Depth
16.6mm
Height
79mm
Weight
0.19kg
Width
31mm
Cable Length
2m

Environmental

IP Rating
IP66,IP67
Ambient Temperature
-40°C to 80°C

Documents

IPD Product Catalogue V17
