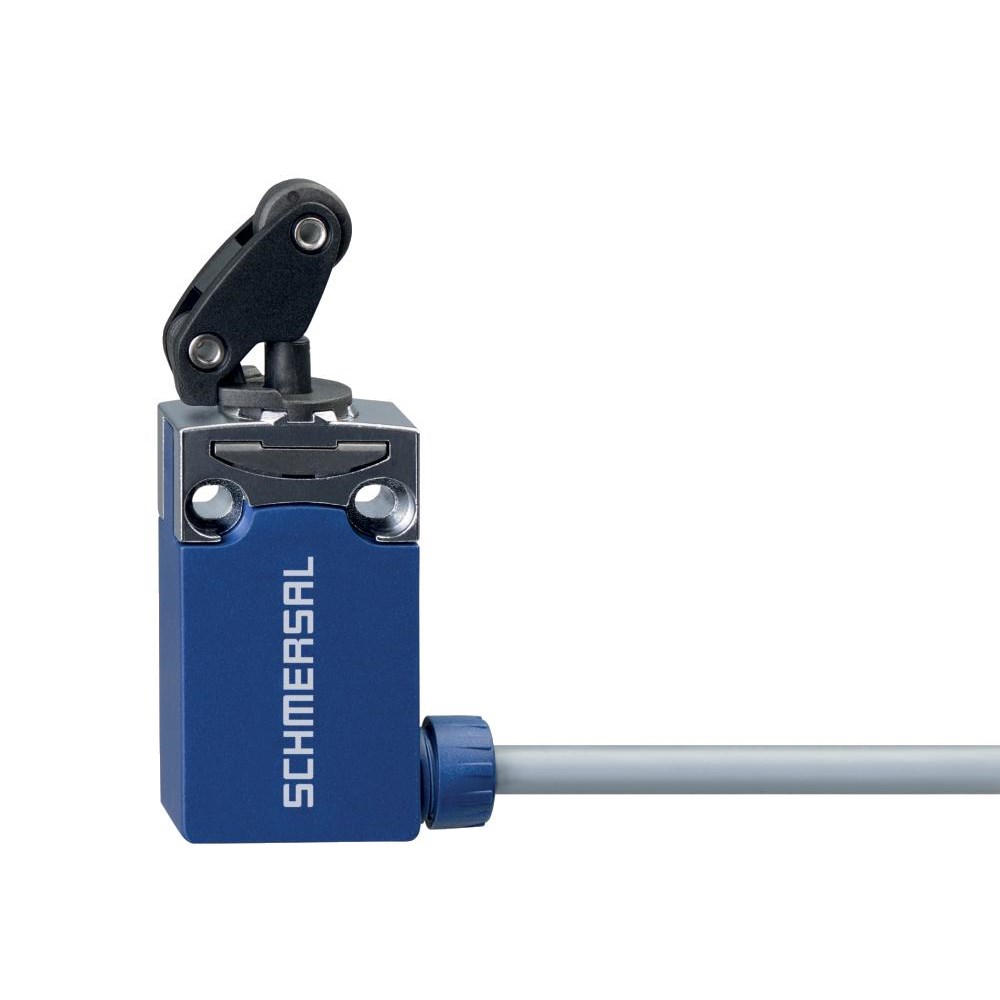

Schmersal 103006568 Position Switch with Safety Function 240VAC 1NO+1NC

Product Code: 103006568

  • Durable plastic, glass fibre reinforced housing
  • IP66/IP67 for robust protection
  • Operates in -30 to 80°C range
  • Long life with 10 million cycles
  • Offset roller lever for precise actuation
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
300V
Terminal Type
Pre-wired cable Cable, 4-pole

Mechanical

Actuator Type
Offset roller lever K200
Housing Material
Plastic, glass-fibre reinforced thermoplastic, zinc die-cast, chromated

Dimensions & Physical Data

Depth
16.6mm
Height
83.6mm
Weight
0.15kg
Width
31mm
Cable Length
2m

Environmental

IP Rating
IP66,IP67
Ambient Temperature
-30°C to 80°C
