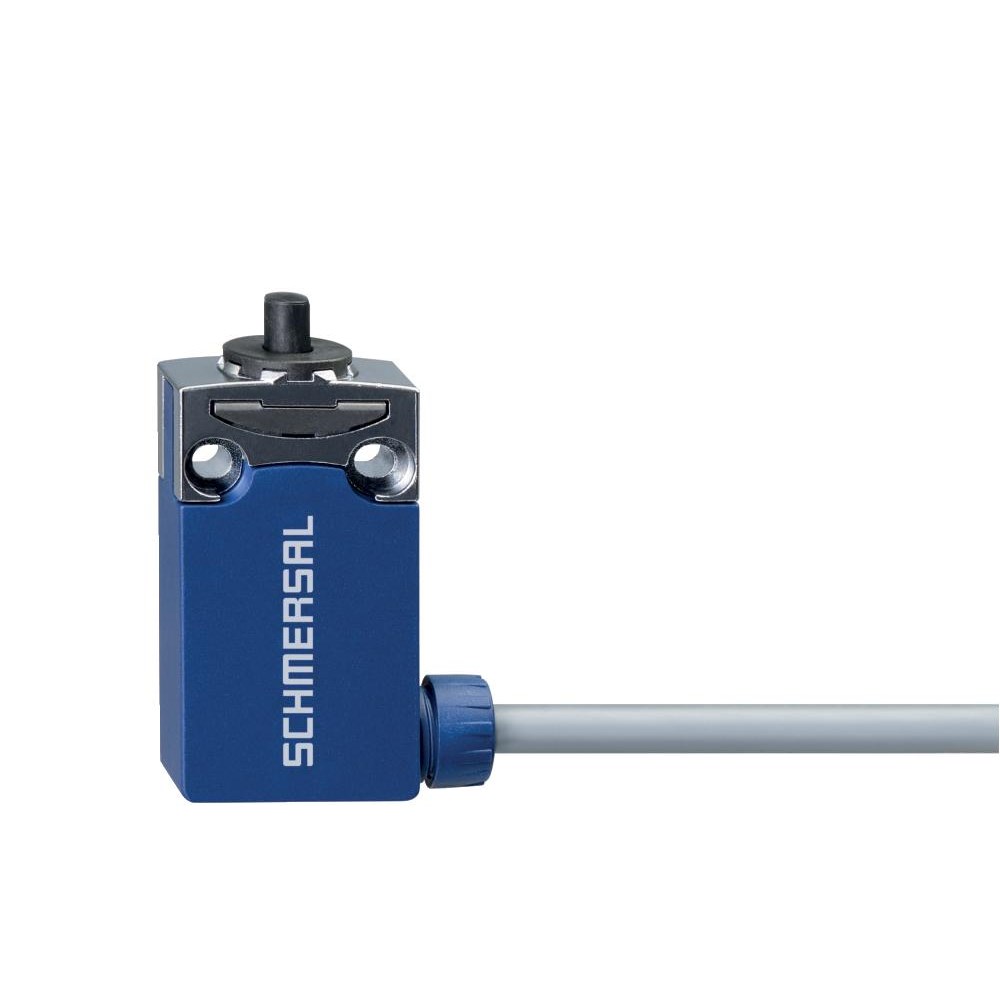

Schmersal 103006564 Position Switch with Safety Function 240VAC 1NO+1NC

Product Code: 103006564

  • Rated for 240 VAC, 1.5 A
  • Durable with 10M mechanical cycles
  • IP66/IP67 protection against dust & water
  • Operates in -30 to 80°C range
  • Certified by BG-GS, CCC, cULus
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
300V
Terminal Type
Pre-wired cable Cable, 4-pole

Mechanical

Actuator Type
Plunger S200
Housing Material
Plastic, glass-fibre reinforced thermoplastic, zinc die-cast, chromated

Dimensions & Physical Data

Depth
16.6mm
Height
64mm
Weight
0.171kg
Width
31mm
Cable Length
2m

Environmental

IP Rating
IP66,IP67
Ambient Temperature
-30°C to 80°C

Documents

IPD Product Catalogue V17
