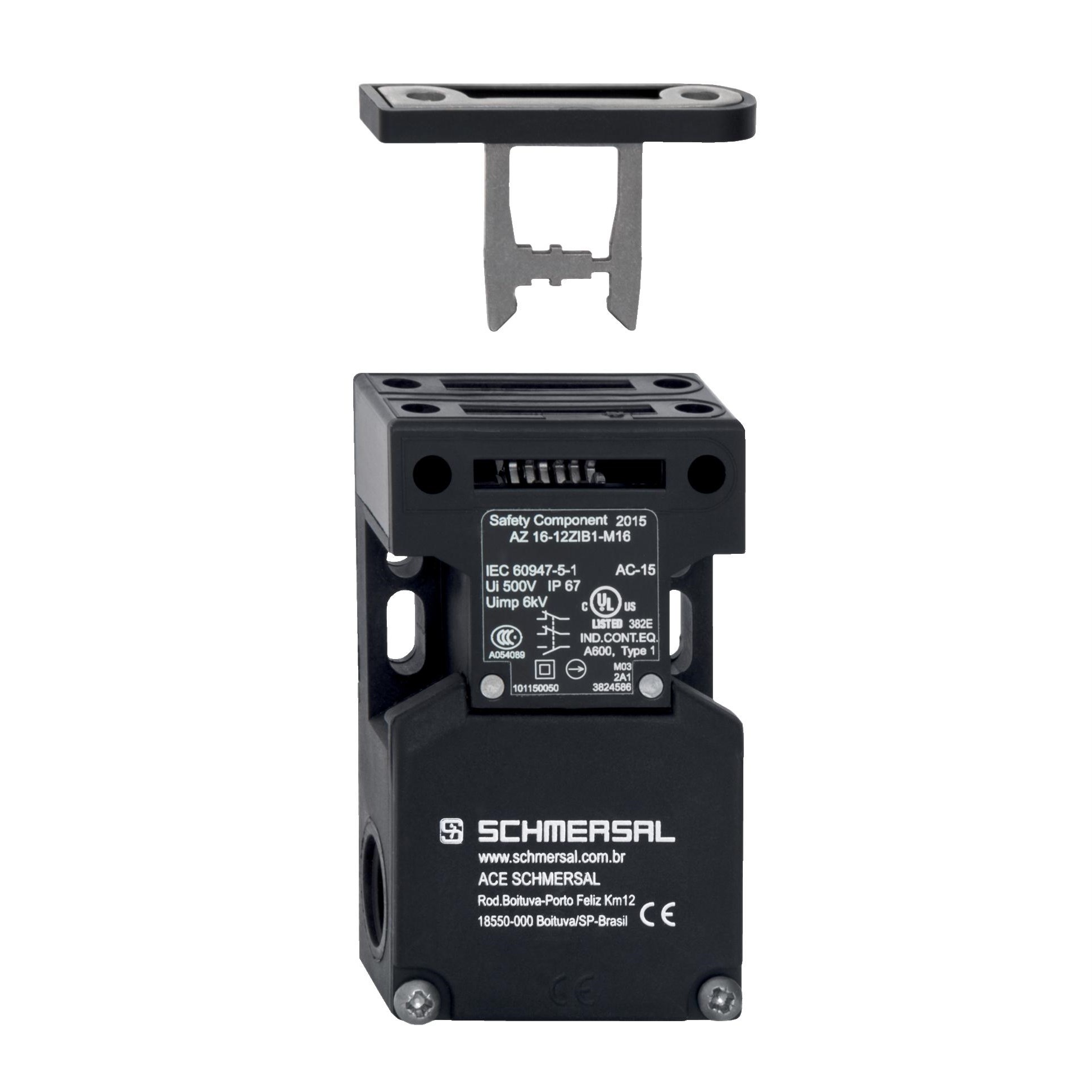

Schmersal 103005855 Safety Switch with Separate Actuator 230VAC 1NO+2NC

Product Code: 103005855

  • 230 VAC, 4 A rated voltage and current
  • Durable with 1M mechanical cycles
  • IP67 protection for harsh environments
  • Slow action with positive break NC contact
  • Flexible angled actuator for versatile use
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Switch With Separate Actuator
Brand
Schmersal
Series
AZ 16

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
1
Rated Current (In)
0.166667
Rated Voltage (Ur)
230 V AC / 24 V DC
Terminal Type
Screw terminals

Mechanical

Cable Entry
3 x M16 x 1.5
Housing Material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing

Dimensions & Physical Data

Depth
30 mm
Height
90 mm
Weight
200 g
Width
52 mm

Environmental

Operating Temperature
-40 to 80 °C
IP Rating
IP67

Documents

IPD Product Catalogue V17
