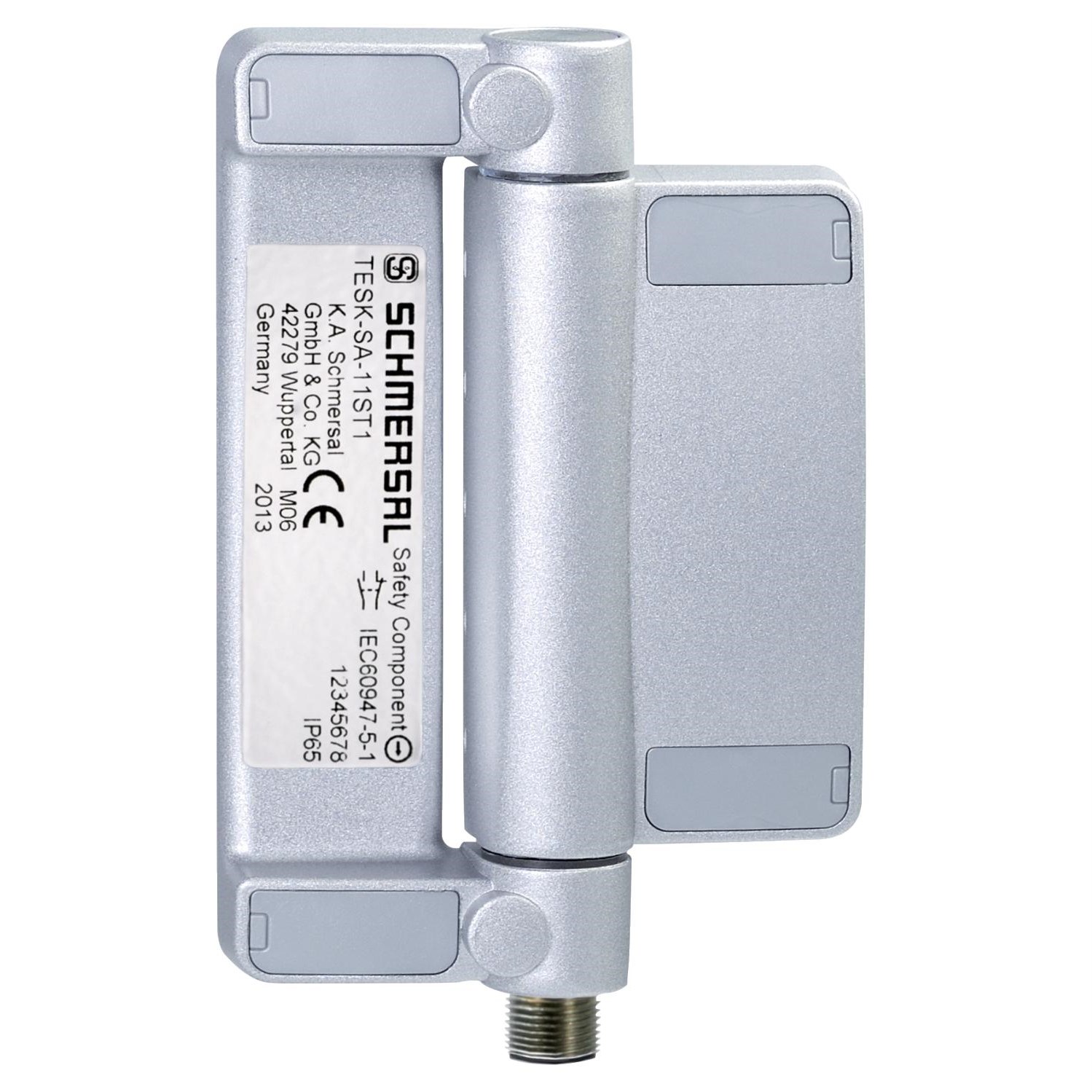

Schmersal 103005763 Safety Hinge Switch 230VAC 1NO+1NC

Product Code: 103005763

  • Operates at 230 VAC with 4 A current
  • Durable metal, die-cast zinc housing
  • IP65 protection against dust and water
  • Mechanical life of 1,000,000 cycles
  • Slow action with 1NO+1NC contact configuration
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Hinge Switch
Brand
Schmersal
Series
TESK

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
1
Rated Current (In)
2A, 1A
Rated Voltage (Ur)
230V AC, 24V DC
Terminal Type
Connector M12

Mechanical

Housing Colour
Silver
Housing Material
Metal, zinc die-cast

Dimensions & Physical Data

Depth
20mm
Height
116mm
Weight
0.34kg
Width
78mm

Environmental

Operating Temperature
-25°C to 65°C
IP Rating
IP65
