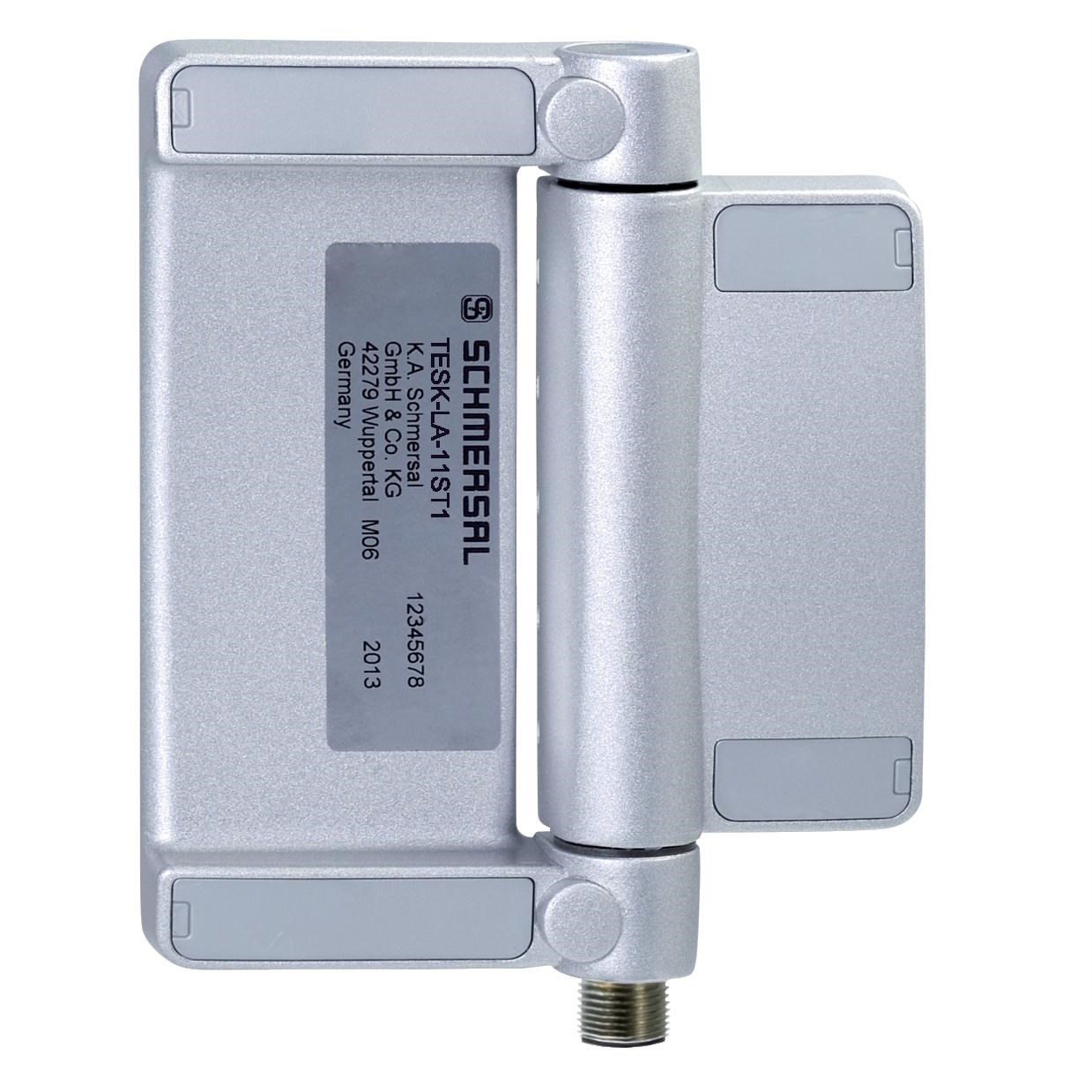

Schmersal 103005721 Safety Hinge Switch 230VAC 1NO+1NC

Product Code: 103005721

  • 230 VAC, 4 A rated for reliable performance
  • Durable metal housing with IP65 protection
  • Long mechanical life of 1 million cycles
  • Operates in -25 to 65°C temperature range
  • Certified by CCC, cULus, EC002591 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Hinge Switch
Brand
Schmersal
Series
TESK

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
1
Rated Current (In)
2A, 1A
Rated Voltage (Ur)
230V AC, 24V DC
Terminal Type
Connector M12

Mechanical

Housing Colour
Silver
Housing Material
Metal, zinc die-cast

Dimensions & Physical Data

Depth
20mm
Height
116mm
Weight
0.371kg
Width
98mm

Environmental

Operating Temperature
-25°C to 65°C
IP Rating
IP65

Documents

IPD Product Catalogue V17
