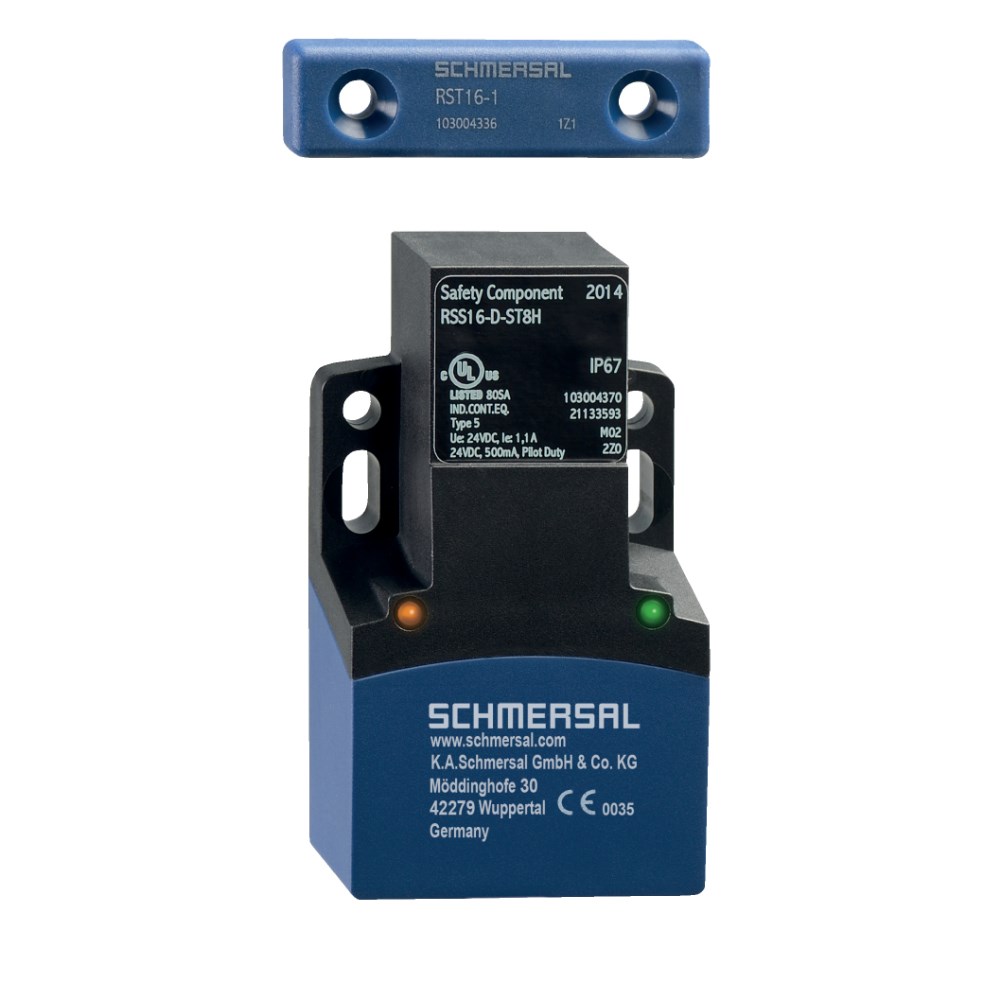

Schmersal 103004343 Electronic safety-sensor

Product Code: 103004343

  • Safety sensor with 26.4 VDC rating
  • Durable thermoplastic housing
  • IP65/IP67 protection for harsh environments
  • M20 x 1.5 mm screw connection
  • Complies with EN IEC 60947-5-3 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Electronic Safety Sensor (Rfid)
Brand
Schmersal
Series
RSS 16

Electrical

Plug Type
Screw connection, 4 × M16 × 1.5 cable entries
Rated Current (In)
2,100mA
Rated Voltage (Ur)
24V DC

Mechanical

Actuator Type
RST16-1
Housing Material
Glass-fibre, reinforced thermoplastic, self-extinguishing

Dimensions & Physical Data

Depth
91mm
Height
30mm
Weight
0.152kg
Width
52mm

Environmental

Operating Temperature
-28°C to 70°C
IP Rating
IP65, IP67

Documents

IPD Product Catalogue V17
