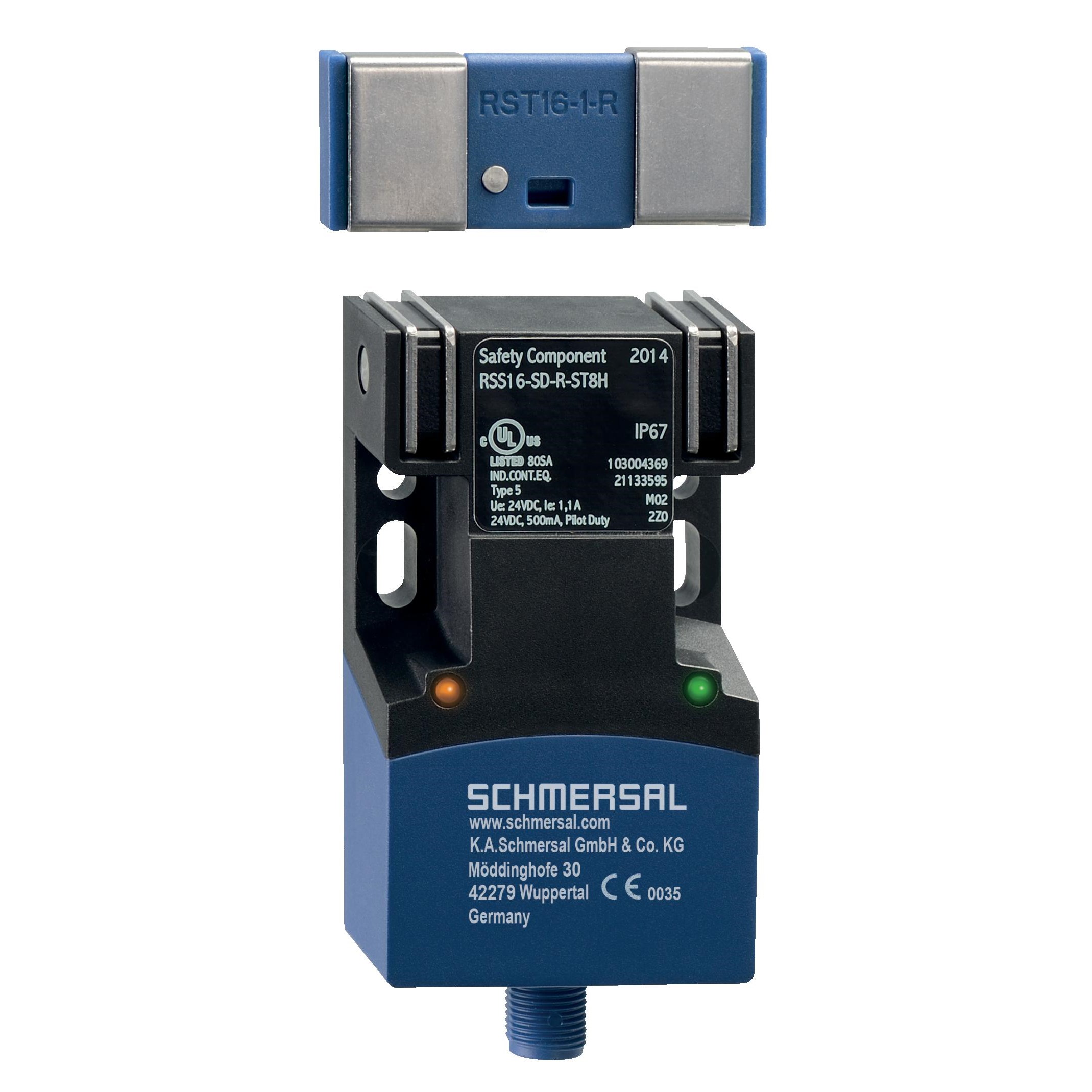

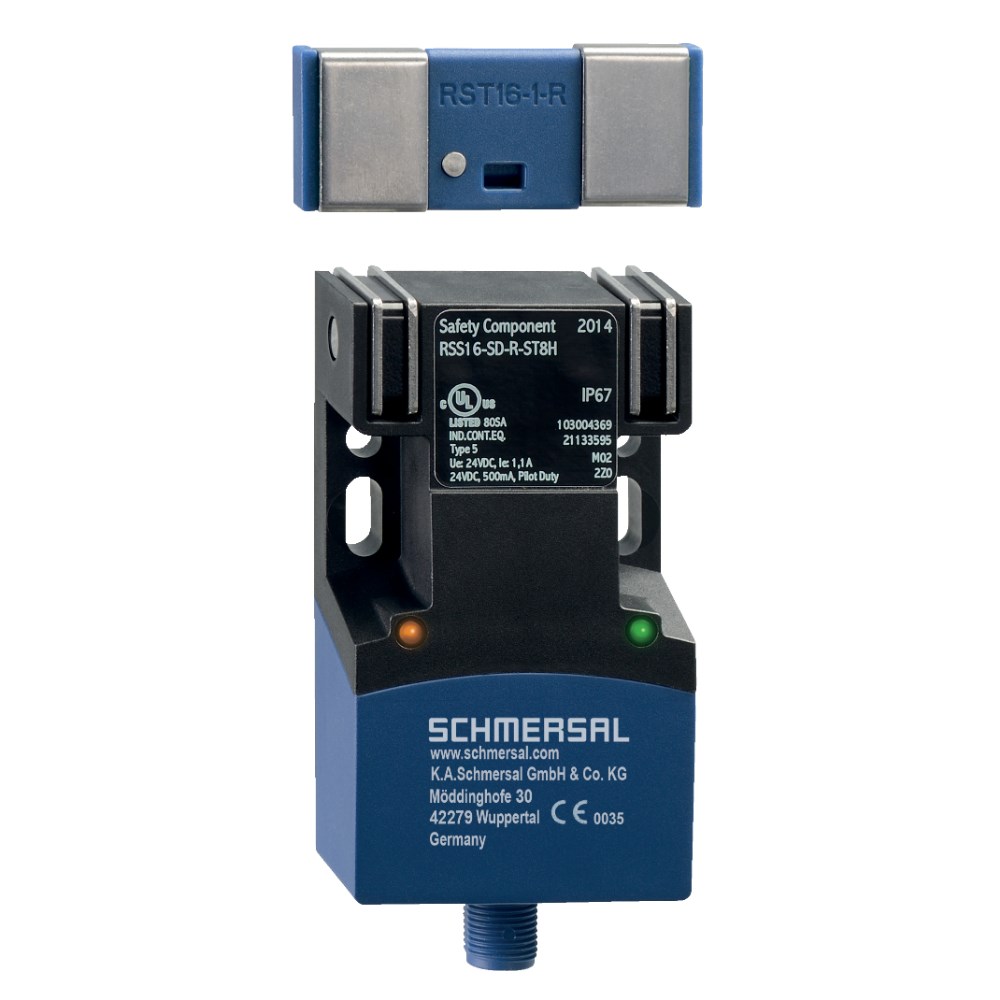

Schmersal 103004338 Safety Sensor

Product Code: 103004338

  • High precision with 0.5 mm accuracy
  • M12 connector, 6 pole for easy connection
  • Non-flush mounting design
  • Durable glass fibre reinforced plastic housing
  • IP65, IP66, IP67 protection ratings
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Electronic Safety Sensor (Rfid)
Brand
Schmersal
Series
RSS 16

Electrical

Plug Type
M12 connector, 8-pole
Rated Current (In)
2,100mA
Rated Voltage (Ur)
24V DC

Mechanical

Actuator Type
RST16-1-R
Housing Material
Glass-fibre, reinforced thermoplastic, self-extinguishing

Dimensions & Physical Data

Depth
91mm
Height
30mm
Weight
0.25kg
Width
52mm

Environmental

Operating Temperature
-28°C to 70°C
IP Rating
IP65, IP66, IP67
