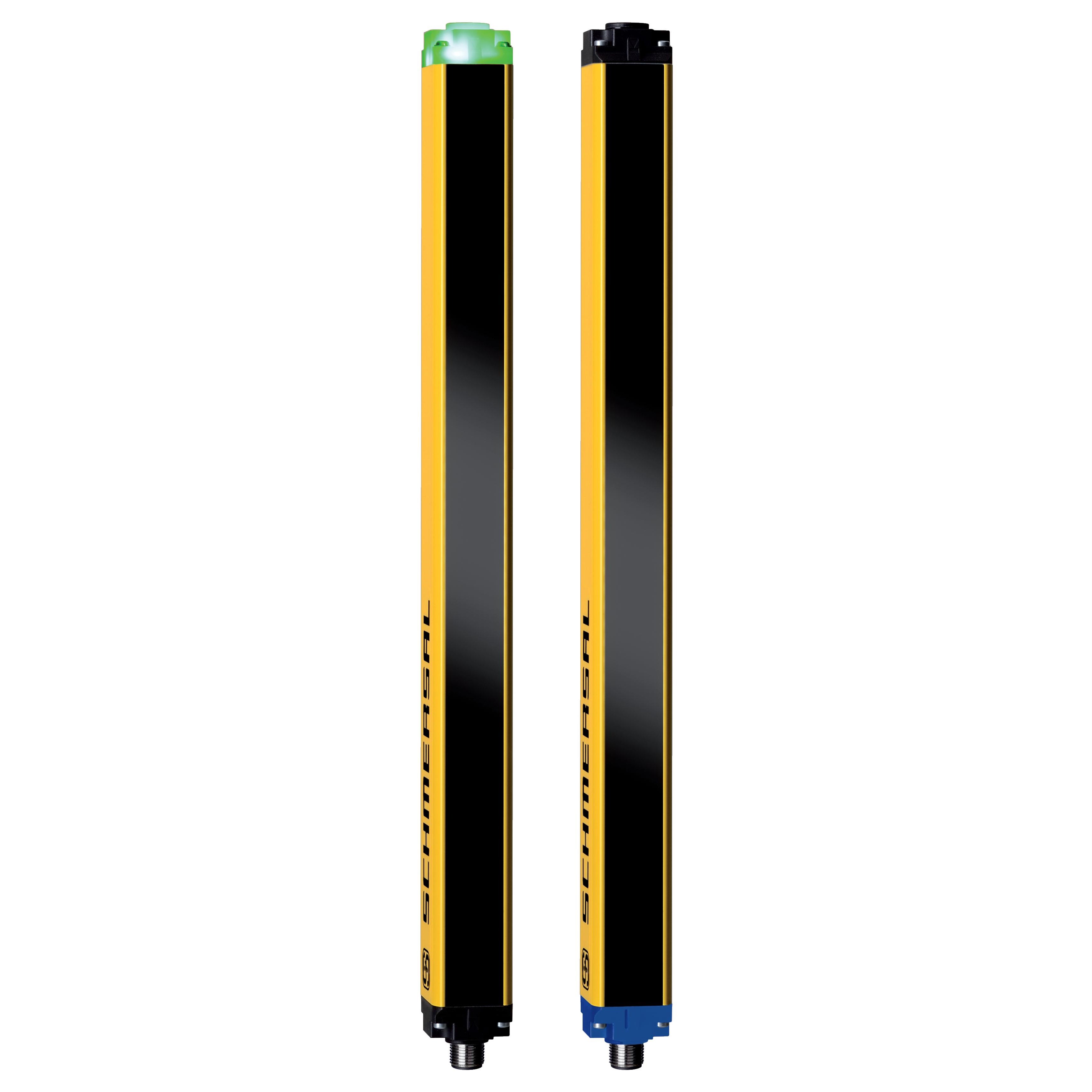

Schmersal 103003948 Safety Light Curtain 24VDC

Product Code: 103003948

  • Durable with 10 million cycle lifespan
  • High protection level: IP67 rated
  • Operates at 24 VDC and 10 W power
  • M20 x 1.5 screw terminal connection
  • Compliant with BG-GS-ET-19, EN IEC standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Light Curtain (Emitter/Receiver Pair)
Brand
Schmersal
Series
SLC440COM

Electrical

Cable Length
100 m
Plug Type
M12, 4-pole (Transmitter); M12, 5-pole (Receiver)
Supply Voltage
24 V DC -20%/+20%

Mechanical

Housing Material
Aluminium
No. of Beams
48
Sensor Distance
0.3 m to 10 m

Dimensions & Physical Data

Depth
33 mm
Height
1,011 mm
Weight
1,620 g
Width
27.8 mm
Protective Height
970 mm

Environmental

Operating Temperature
-10 to +50 °C
IP Rating
IP67

Documents

IPD Product Catalogue V17
